Evrychou (2nd mill,Tou Stylianide)
Type: Watermill
District: Nicosia
Village: Evrychou
River: Karkotis
Location - Toponym: NA
Cadastral Info: Sheet/Plan: 28/14 IIV03; Plot: 1165
-E.-Gibson-7-thumb.jpg)
Mill Description

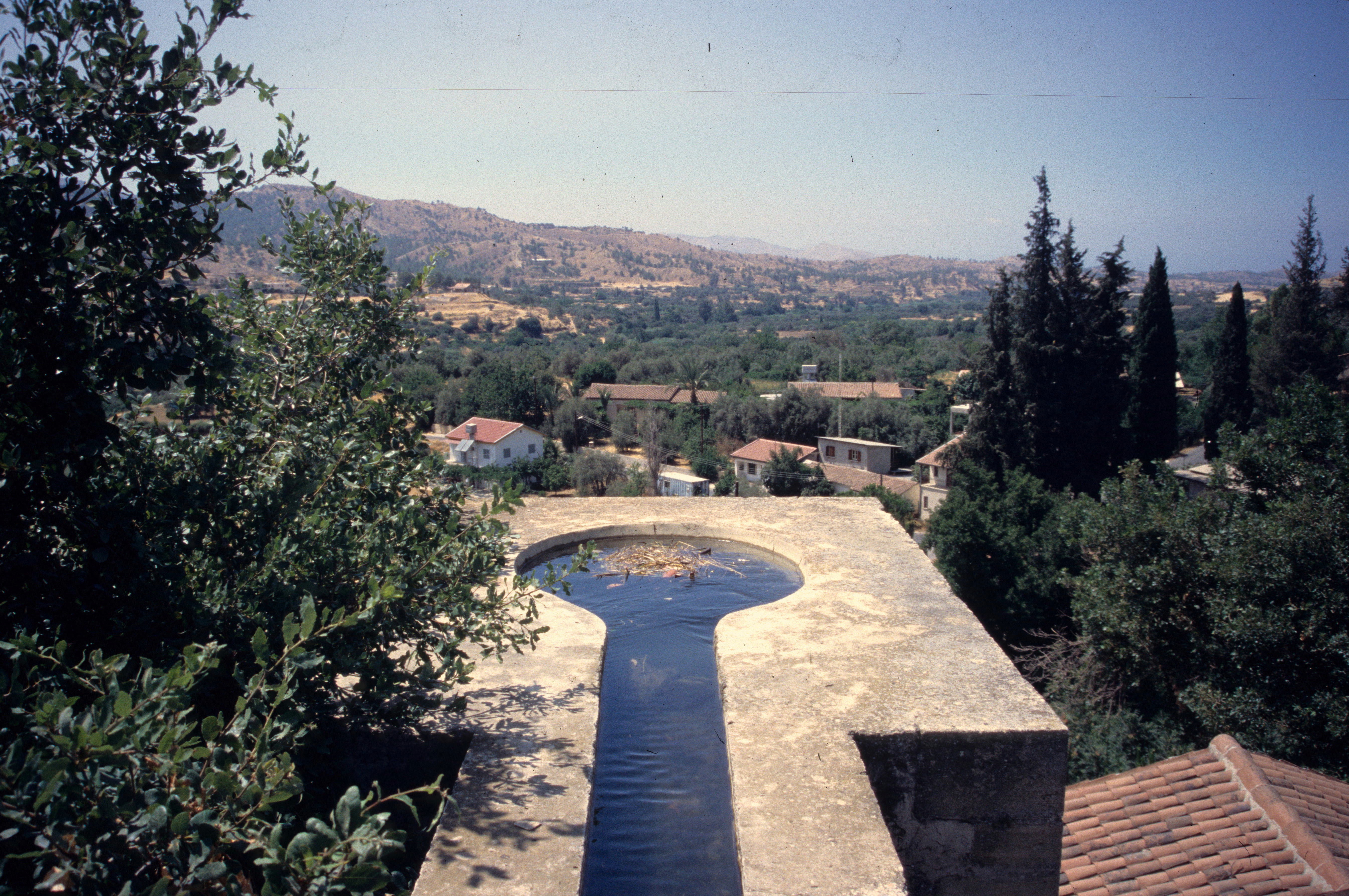

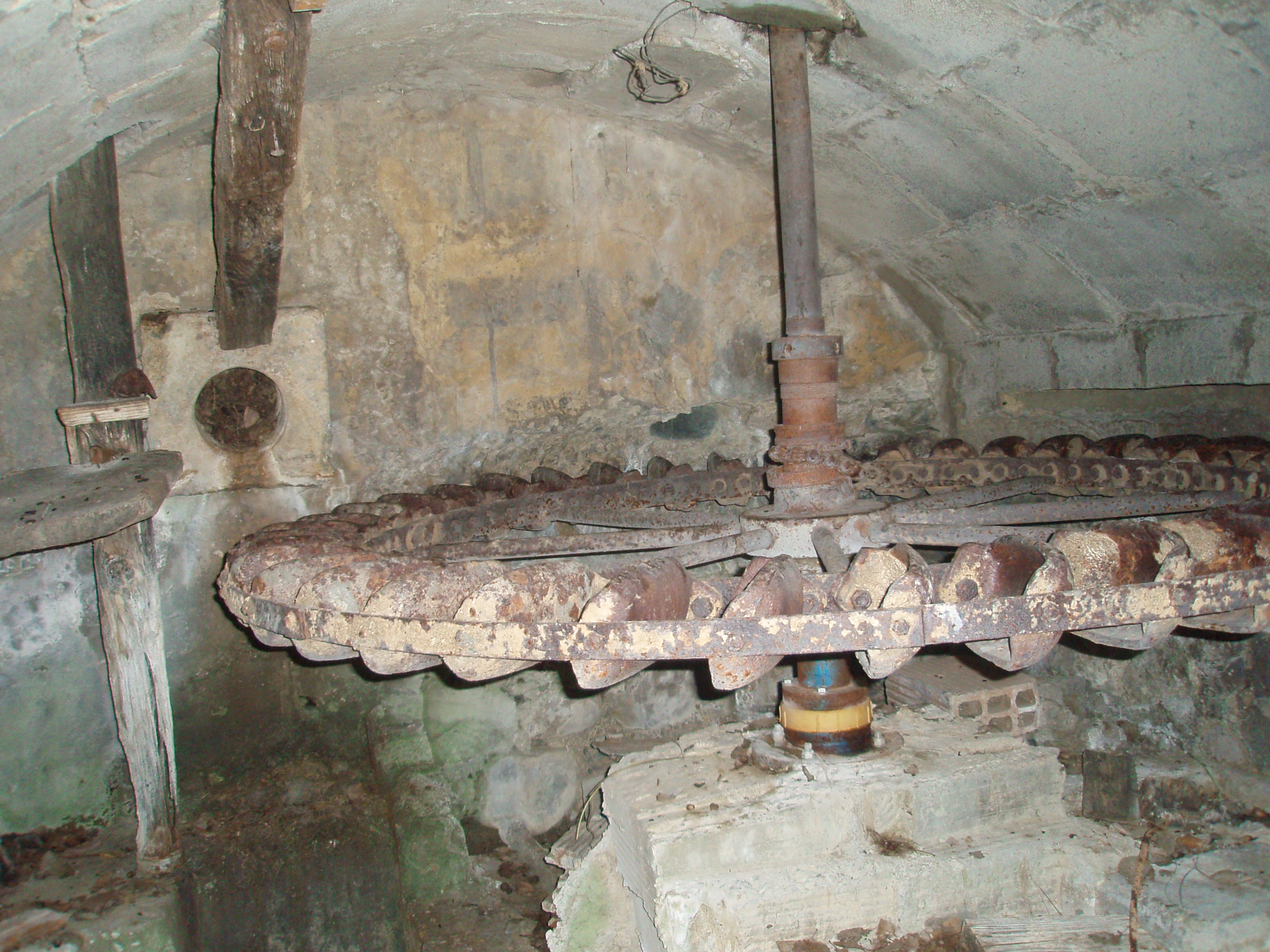

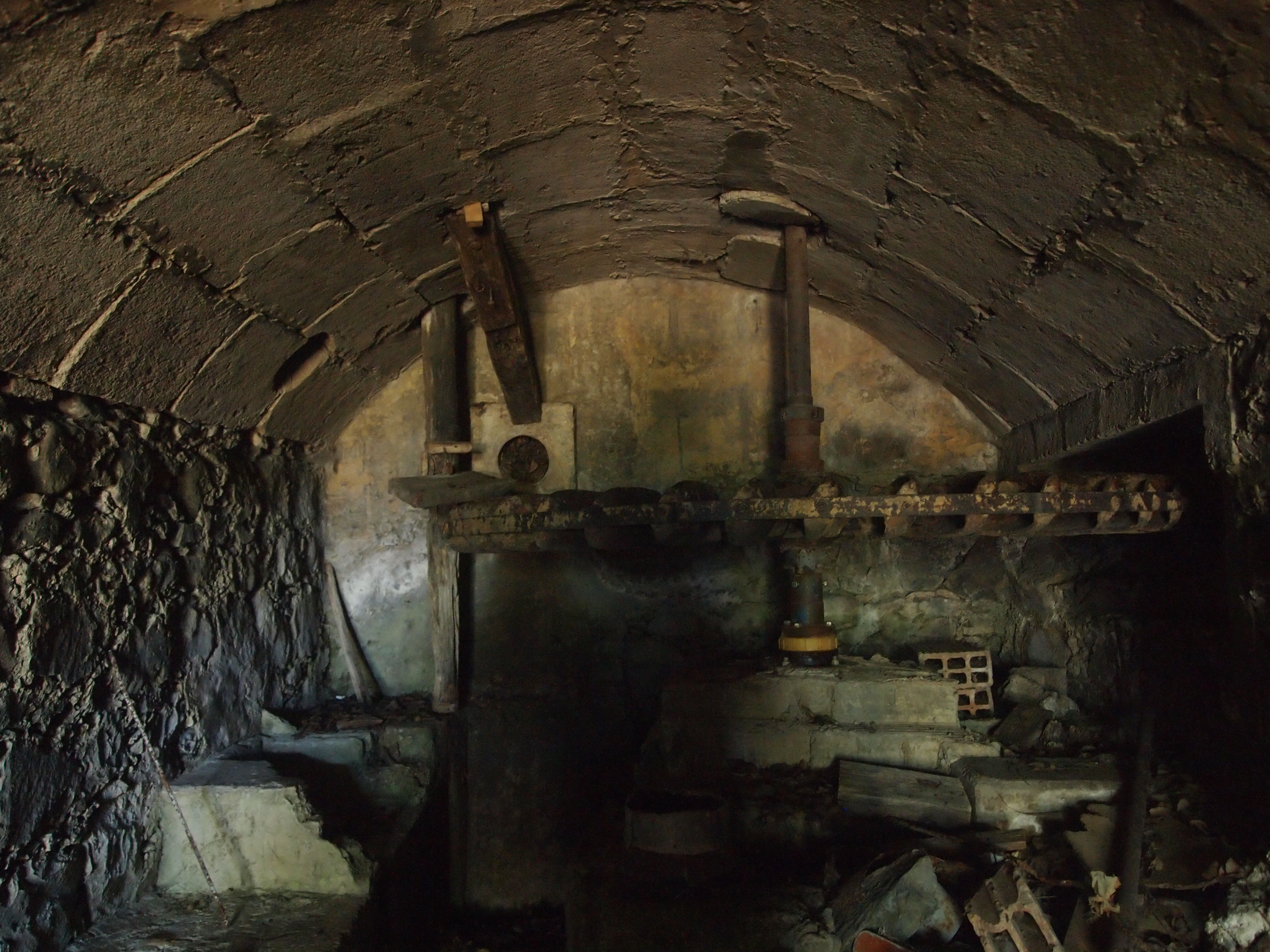

This well-maintained stonebuilt mill has associated domestic quarters for the miller and his wife. It was rebuilt in its present form in 1878, and renovated in 1926. It is constructed of plastered rubble masonry with limestone quoins. The penstock is 16m high; its base is 7.5 x 3.0 m and at the top it measures 2.6 x 3.8 m. The turbine room is constructed of stone with a barrel vault, with the mudbrick milling room above it measuring 7.7 x 7.1 m. Currently the milling room has a concrete floor, but this was originally of stone. The roof of terracotta tiles is now supported by two rolled steel girders. The mill has an engine for periods of low water flow, located on a concrete base in a separate engine room measuring 3.4 x 2.1 m. (For a full account with photos, plans and interviews with the miller, see TAESP Volume 2: 63–70) Evans and S. Floridou
Photos
-E.-Gibson-7.JPG)
Evrychou (tou Stylianide) E. Gibson 7.JPG
-M.-Given.JPG)

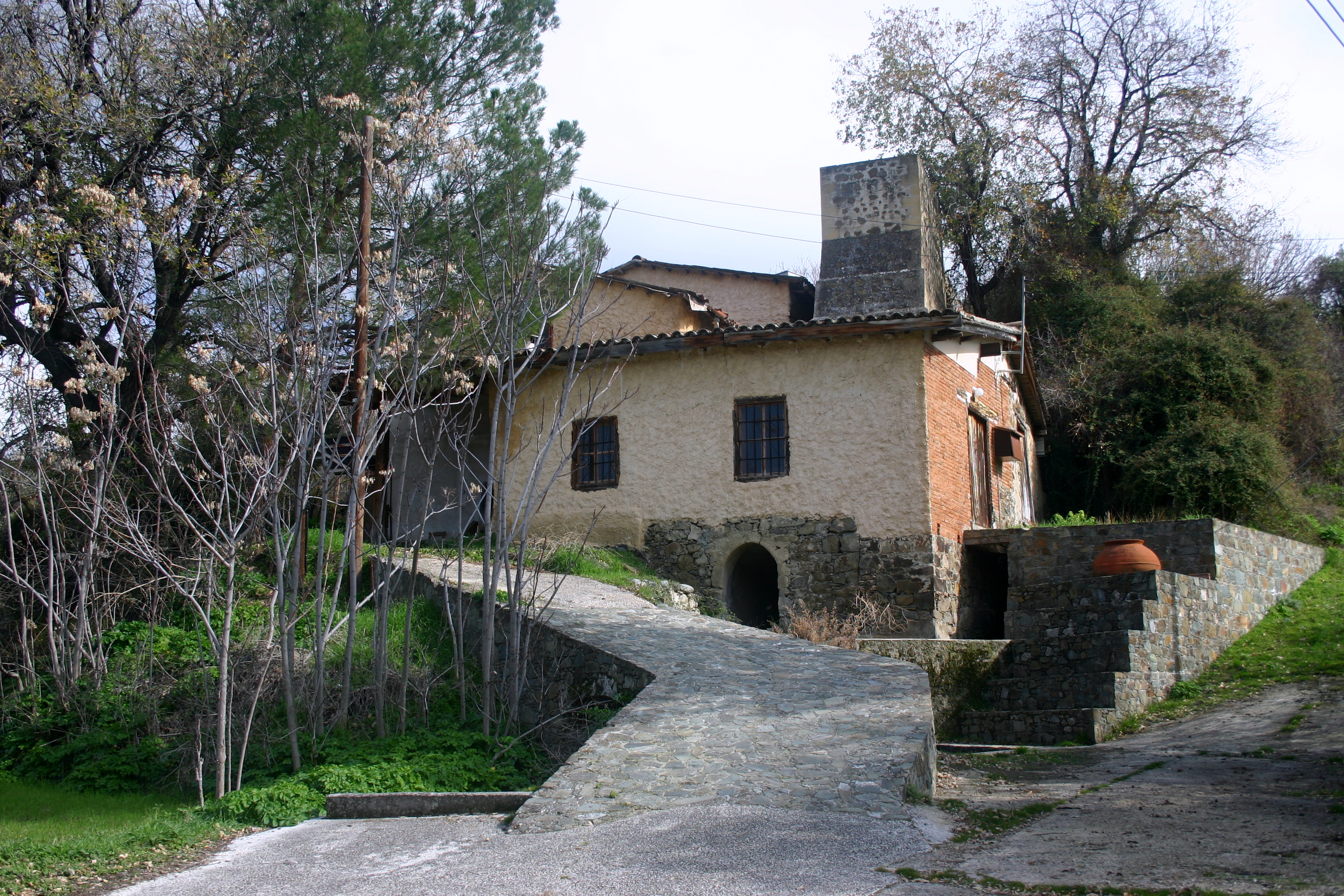

Evrychou (tou Stylianide) M. Given.JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(1).JPG)

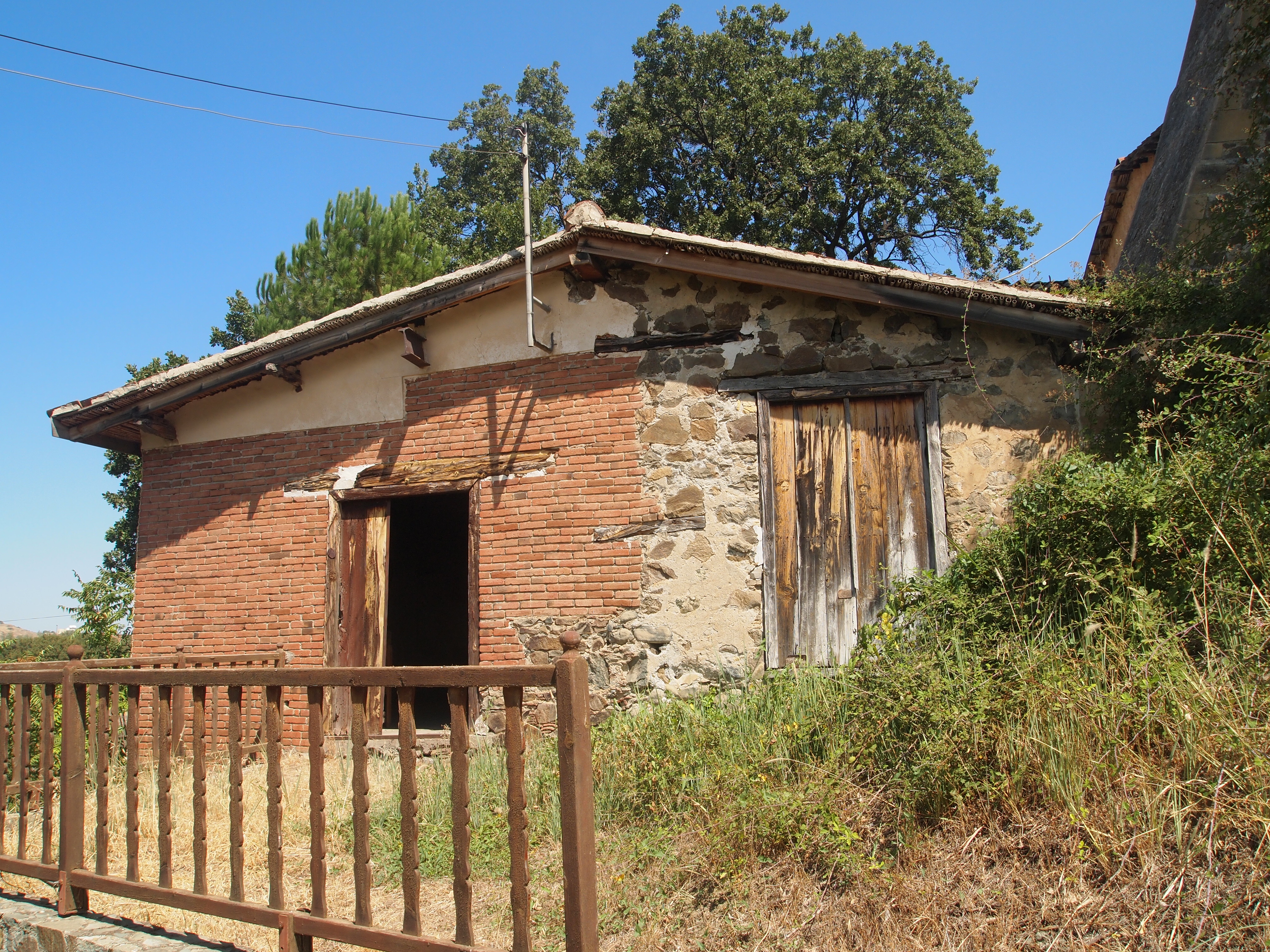

Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (1).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(10).JPG)

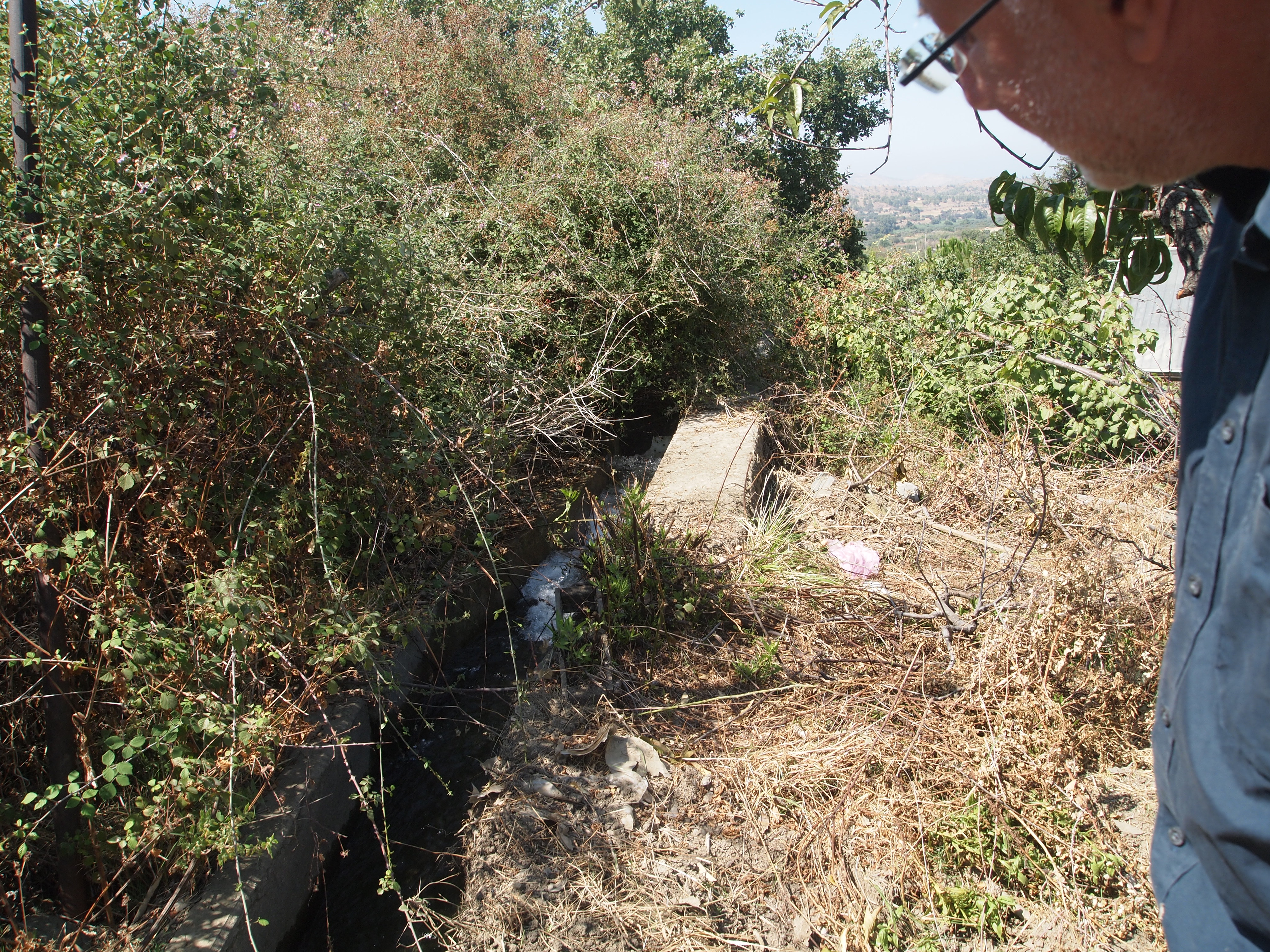

Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (10).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(11).JPG)

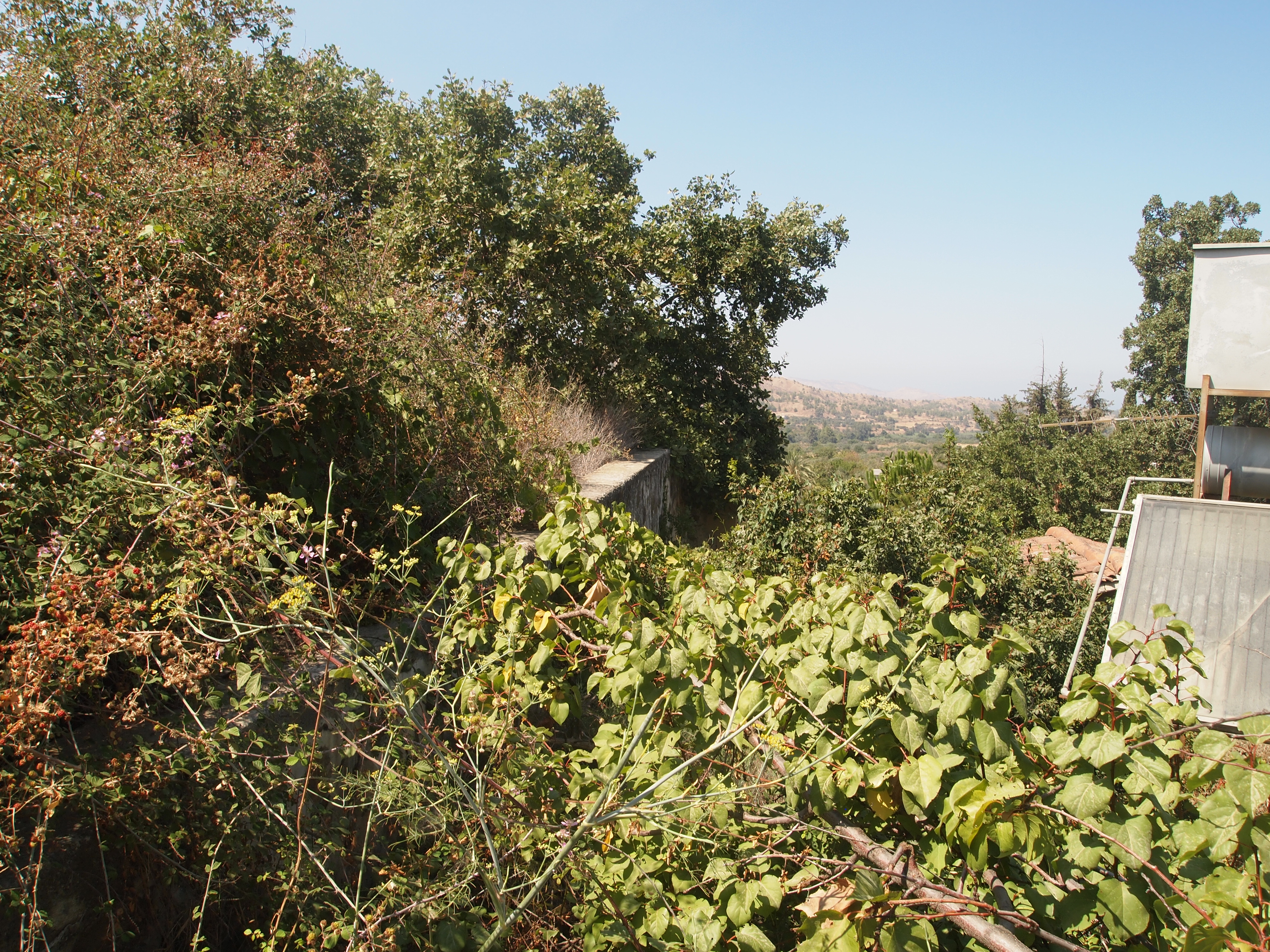

Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (11).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(12).JPG)
Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (12).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(13).JPG)
Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (13).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(14).JPG)
Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (14).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(15).JPG)
Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (15).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(16).JPG)

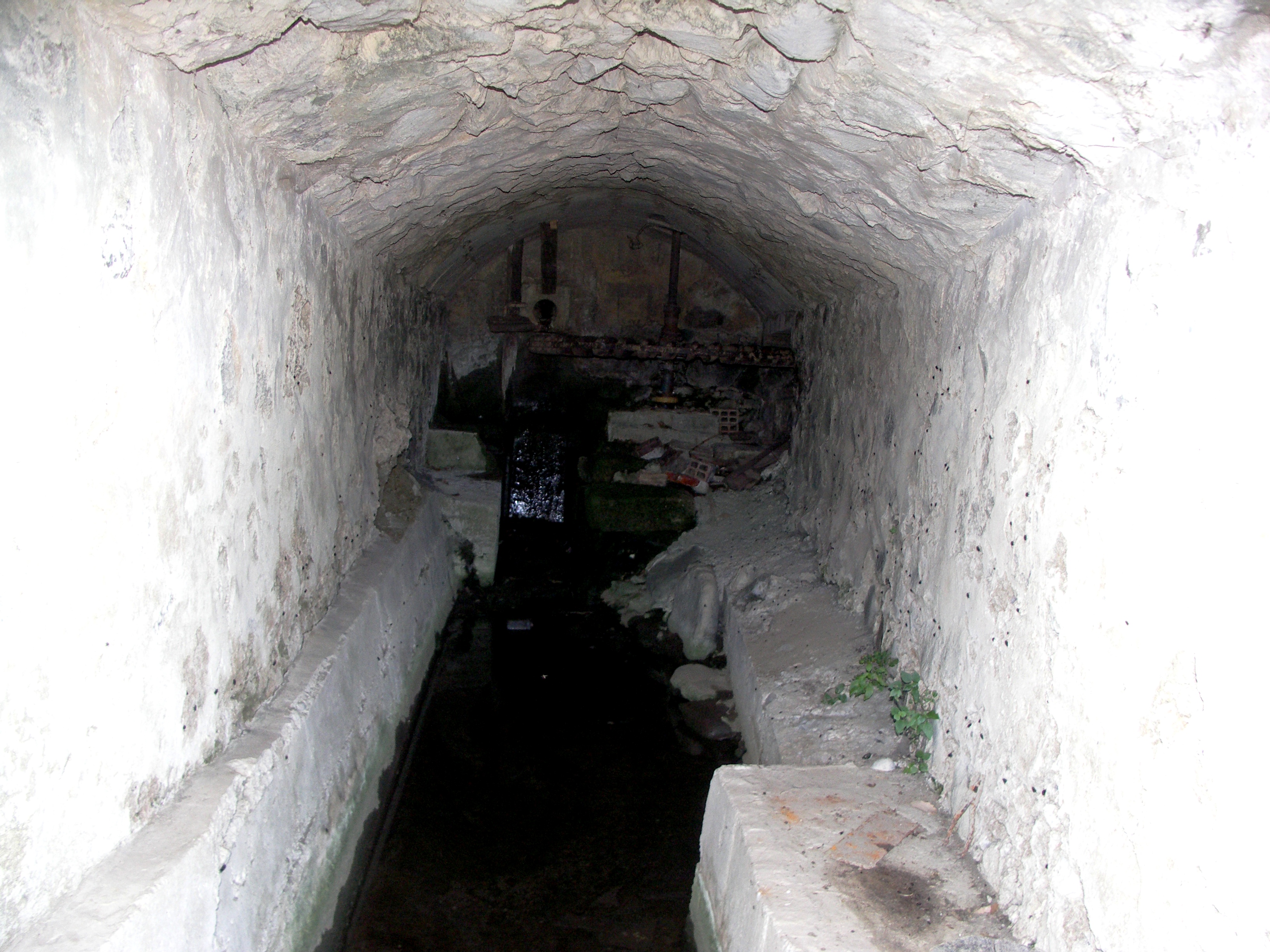

Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (16).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(17).JPG)

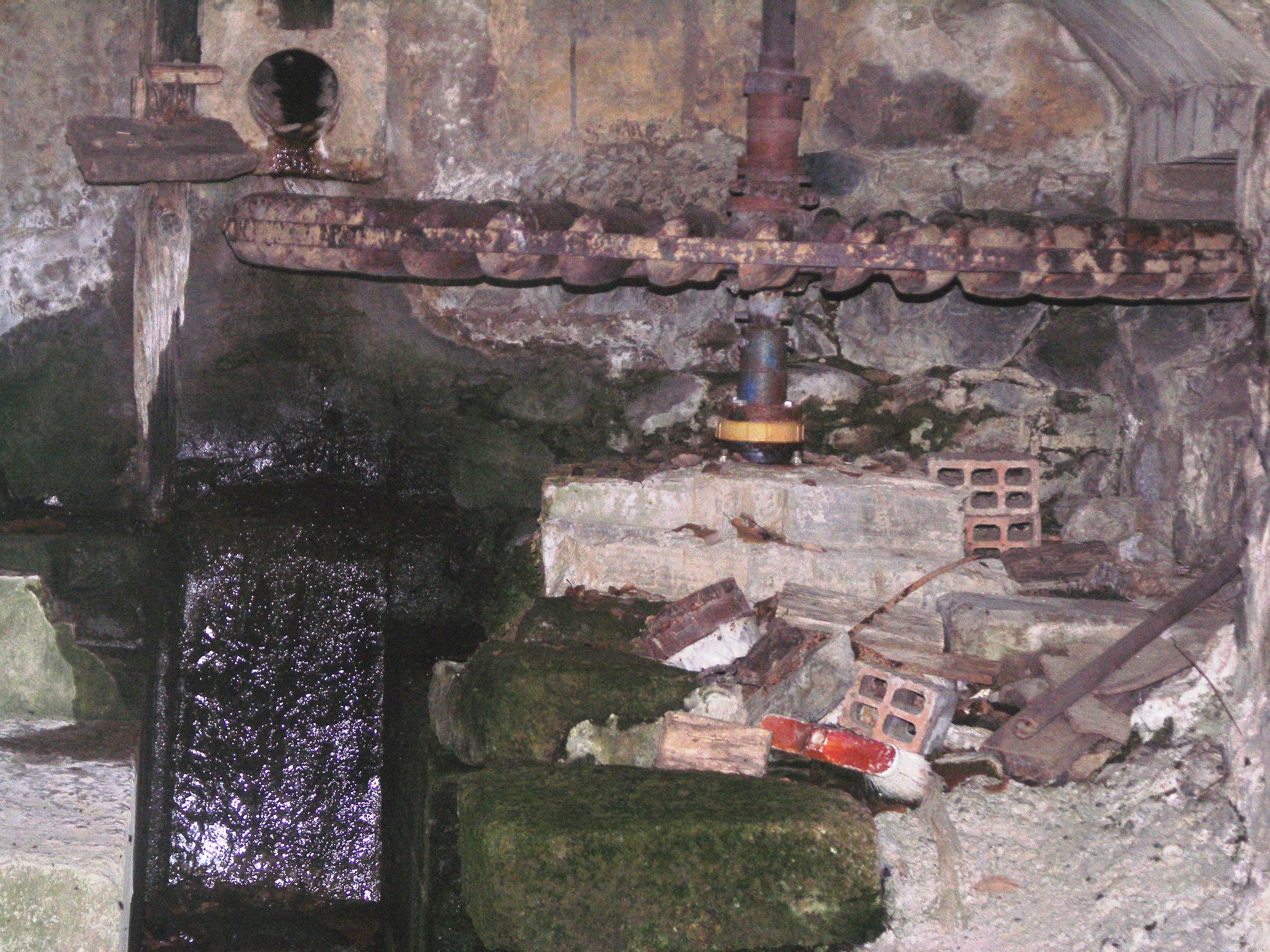

Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (17).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(18).JPG)

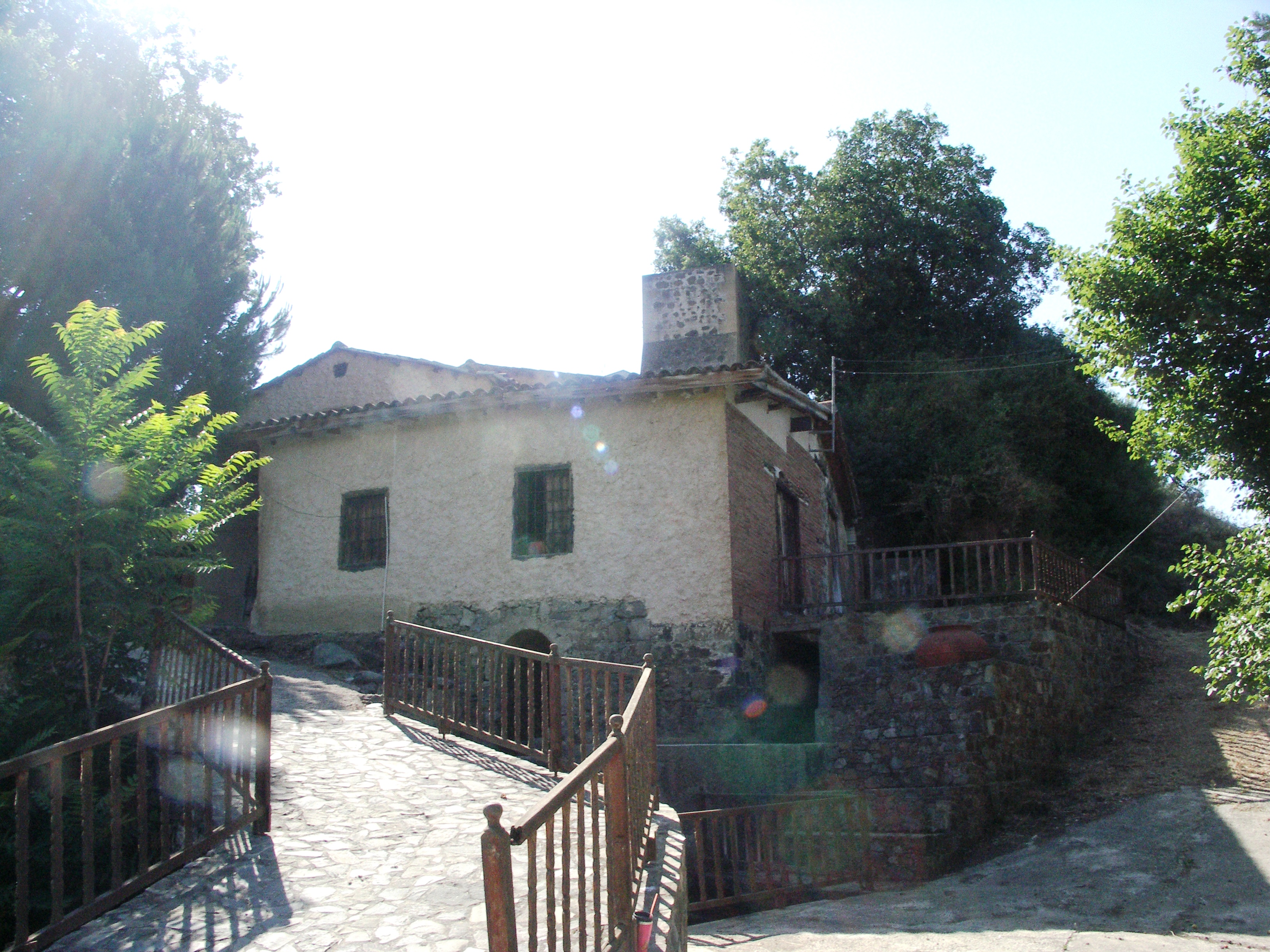

Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (18).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(19).JPG)

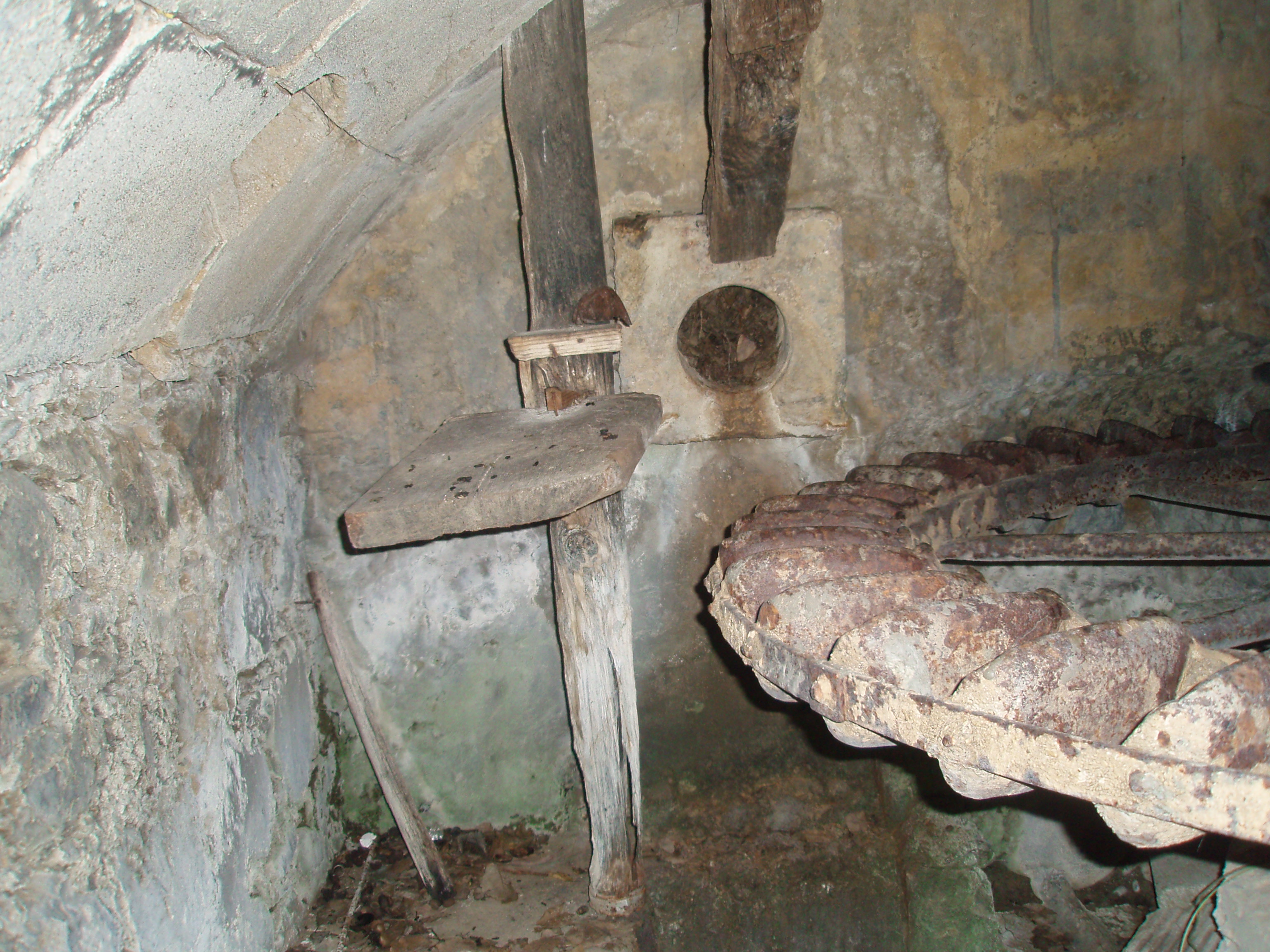

Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (19).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(2).JPG)
Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (2).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(20).JPG)
Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (20).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(21).JPG)
Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (21).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(22).JPG)

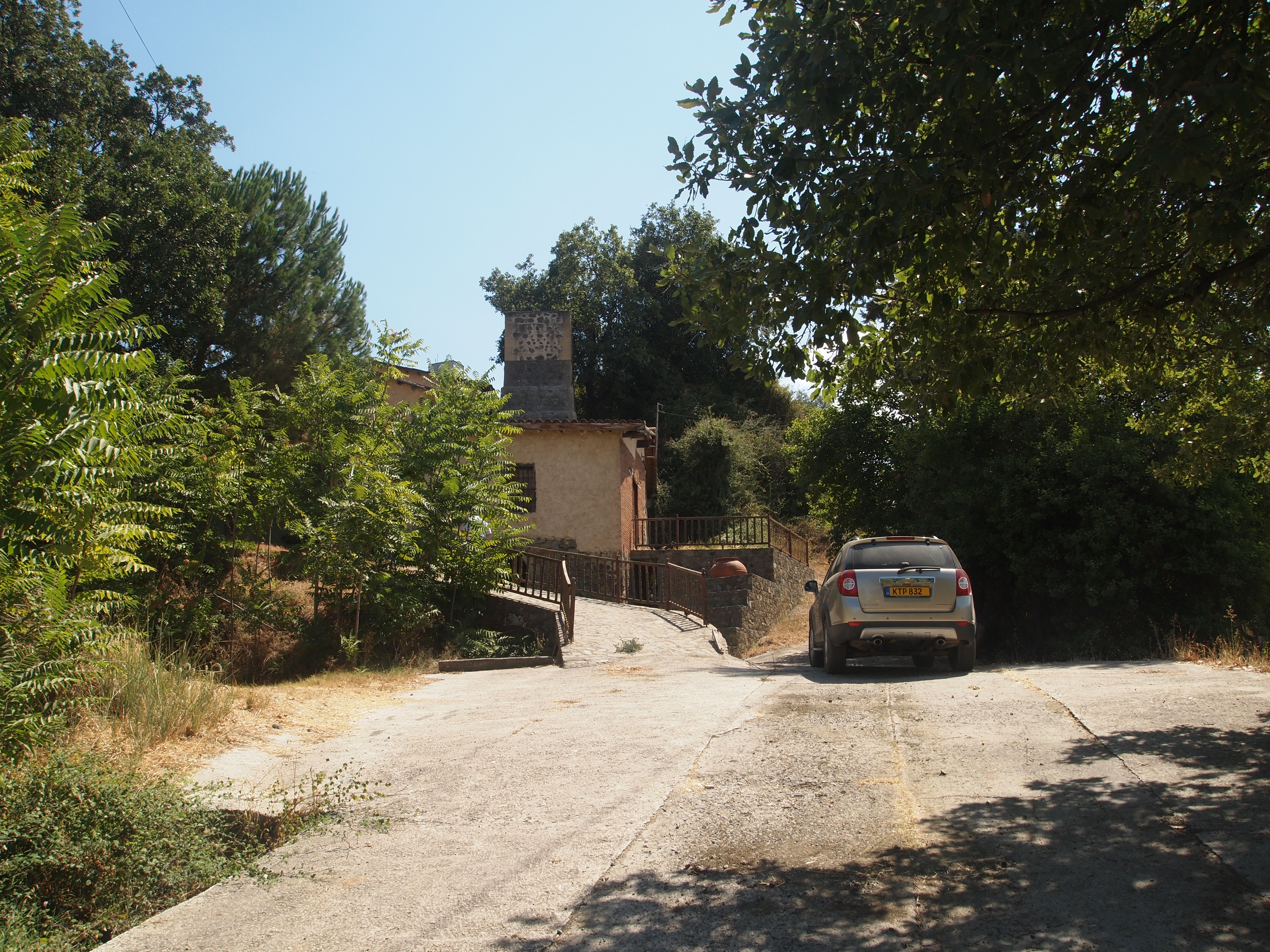

Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (22).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(23).JPG)

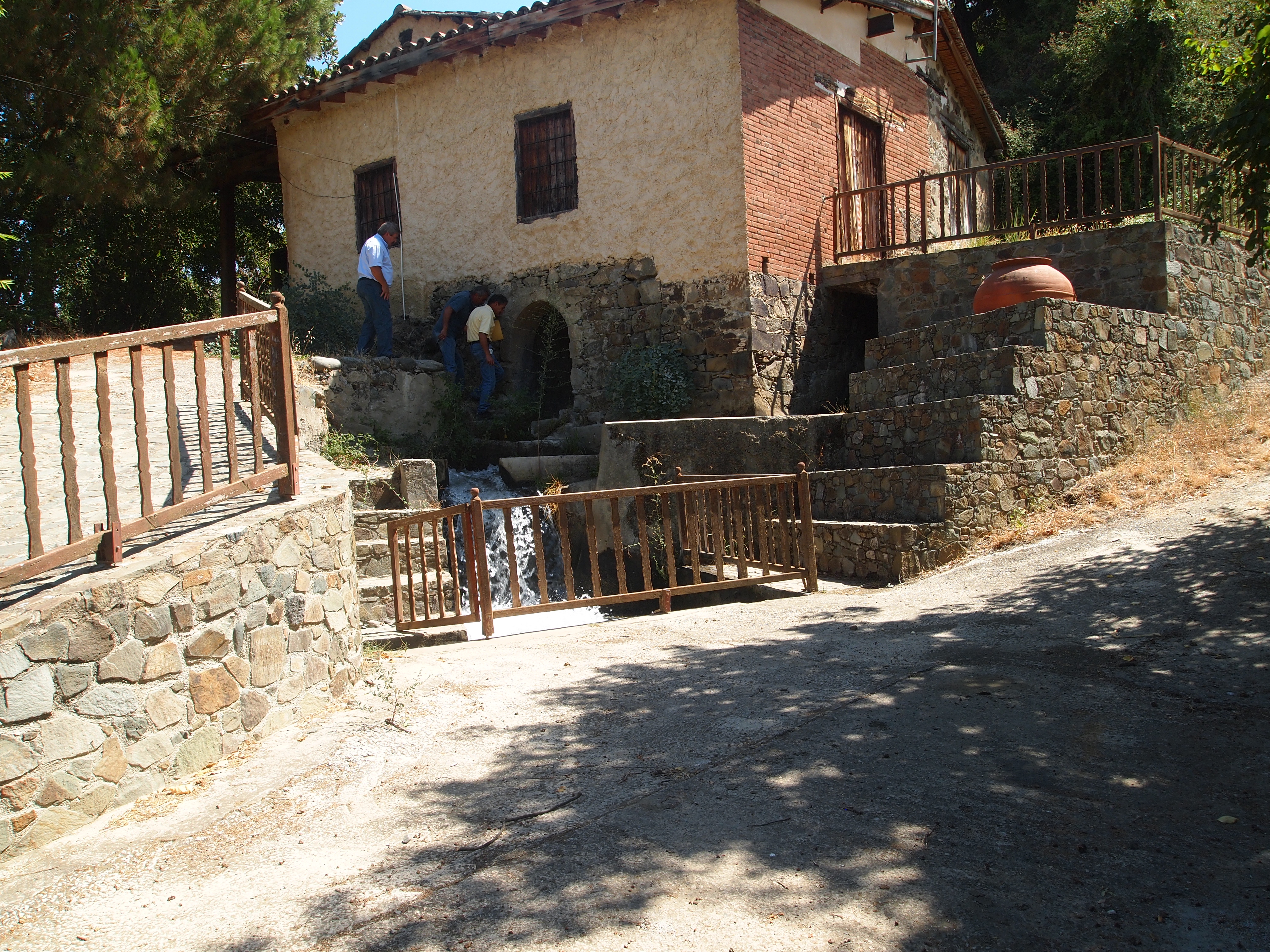

Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (23).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(24).JPG)

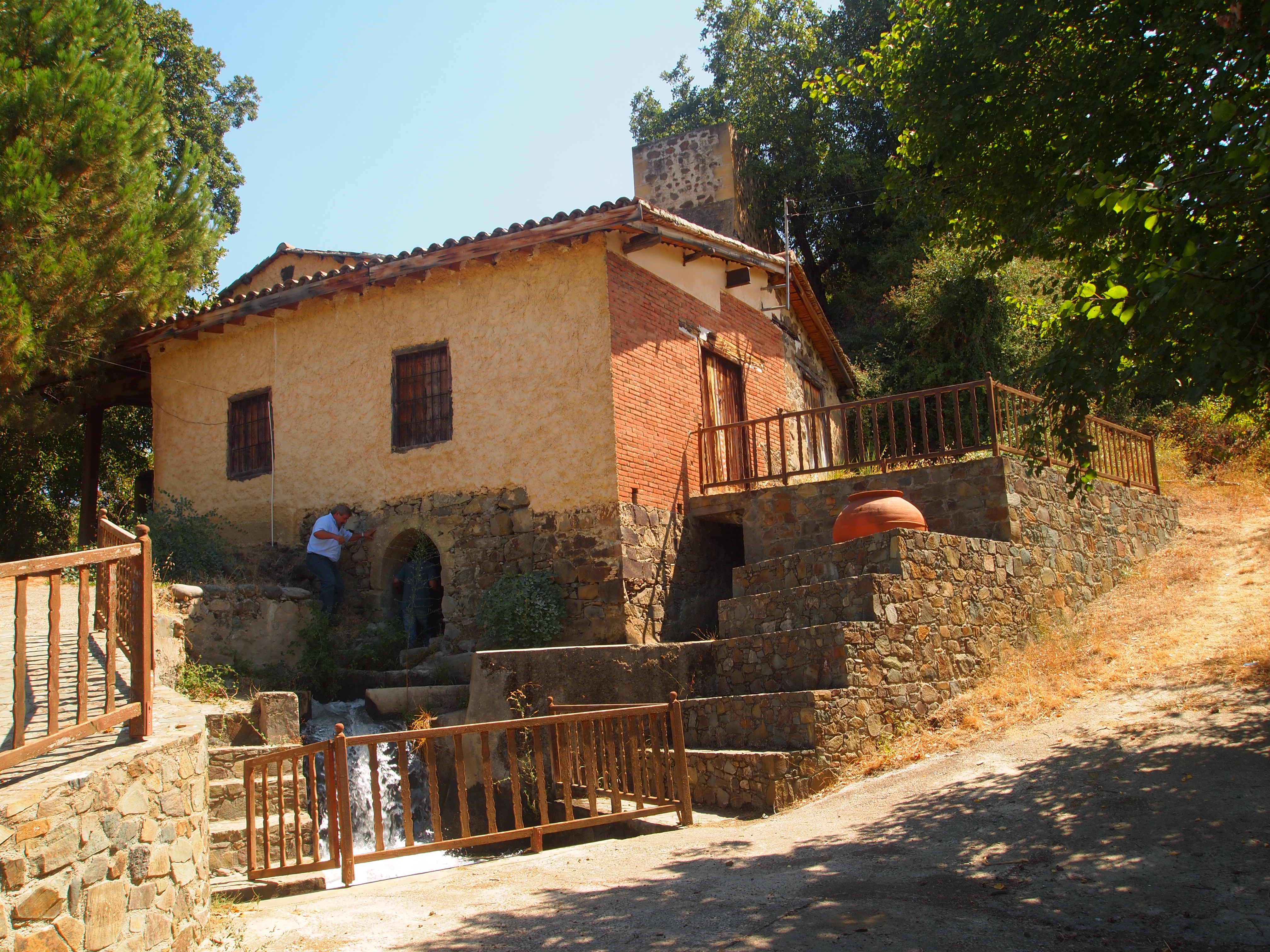

Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (24).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(25).JPG)
Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (25).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(26).JPG)
Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (26).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(27).JPG)

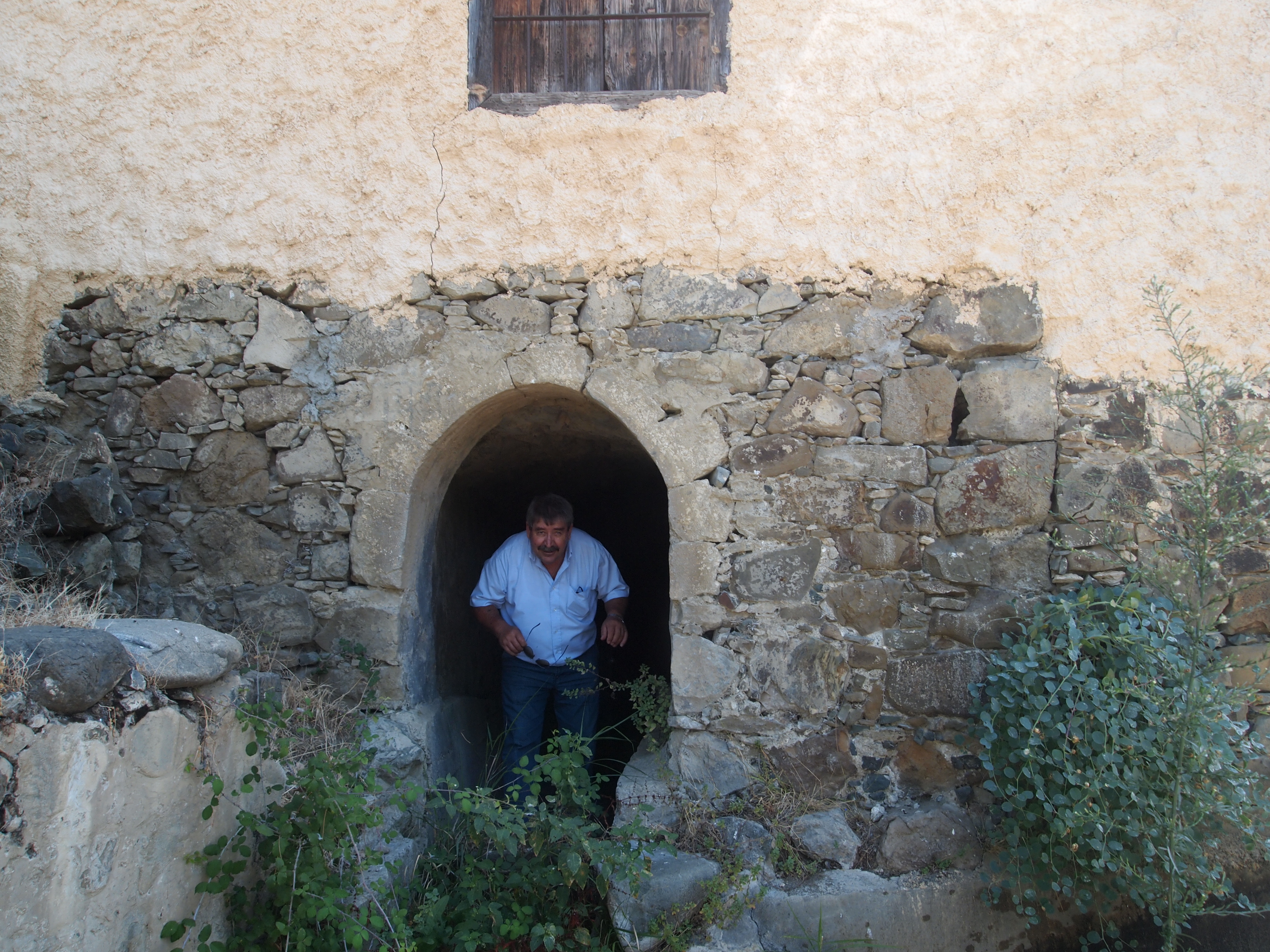

Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (27).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(28).JPG)
Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (28).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(29).JPG)
Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (29).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(3).JPG)

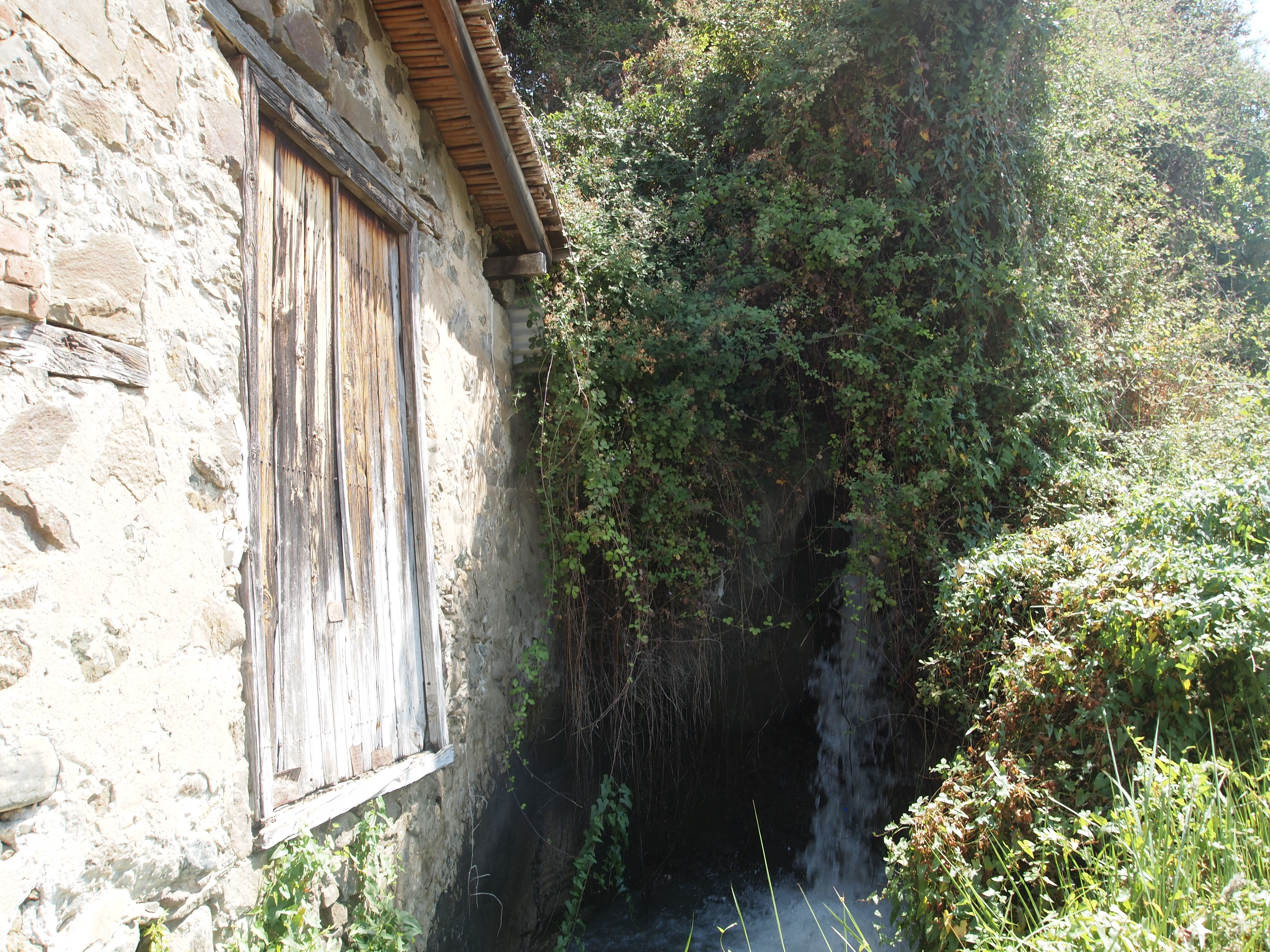

Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (3).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(30).JPG)

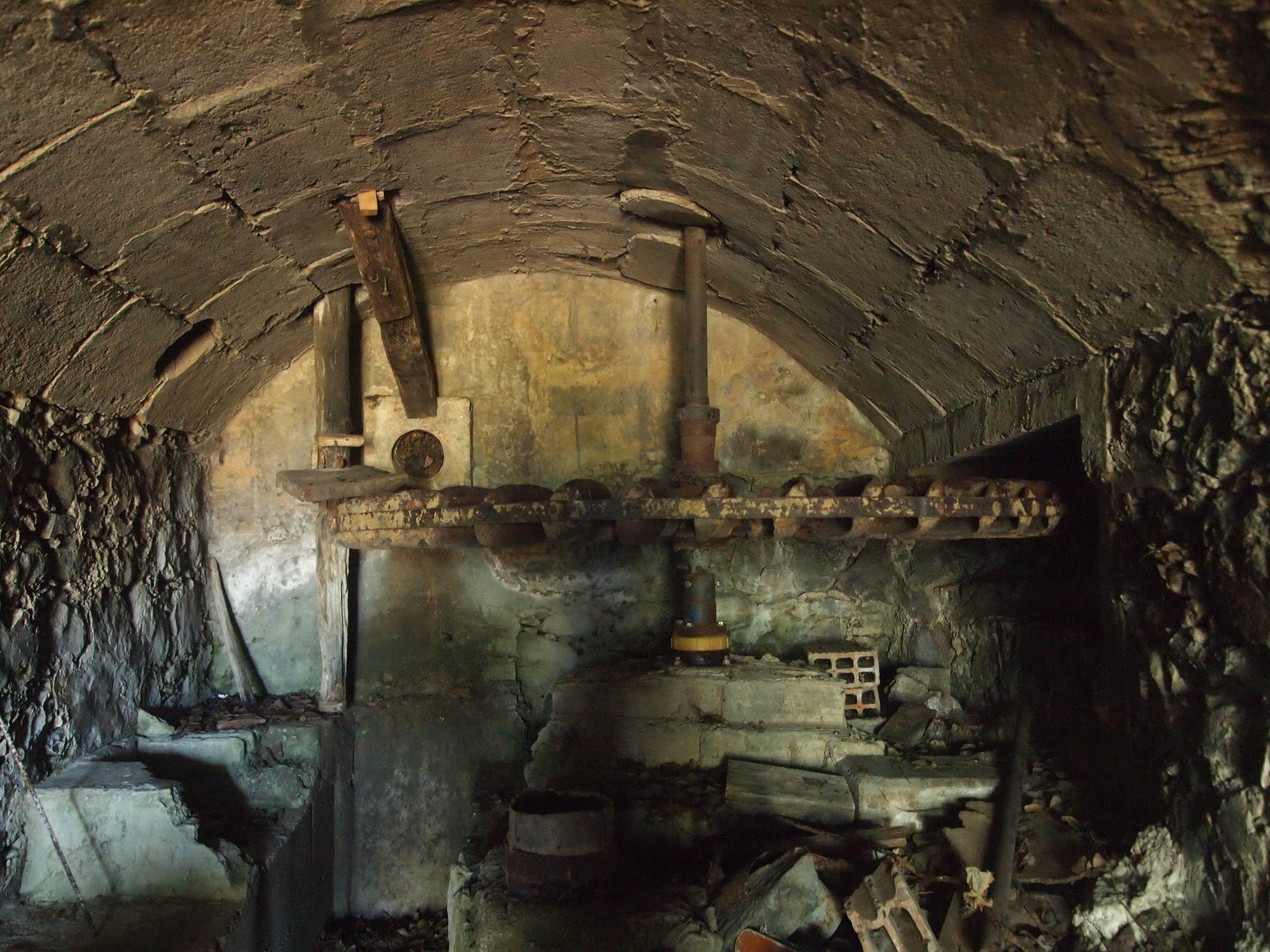

Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (30).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(31).JPG)
Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (31).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(32).JPG)

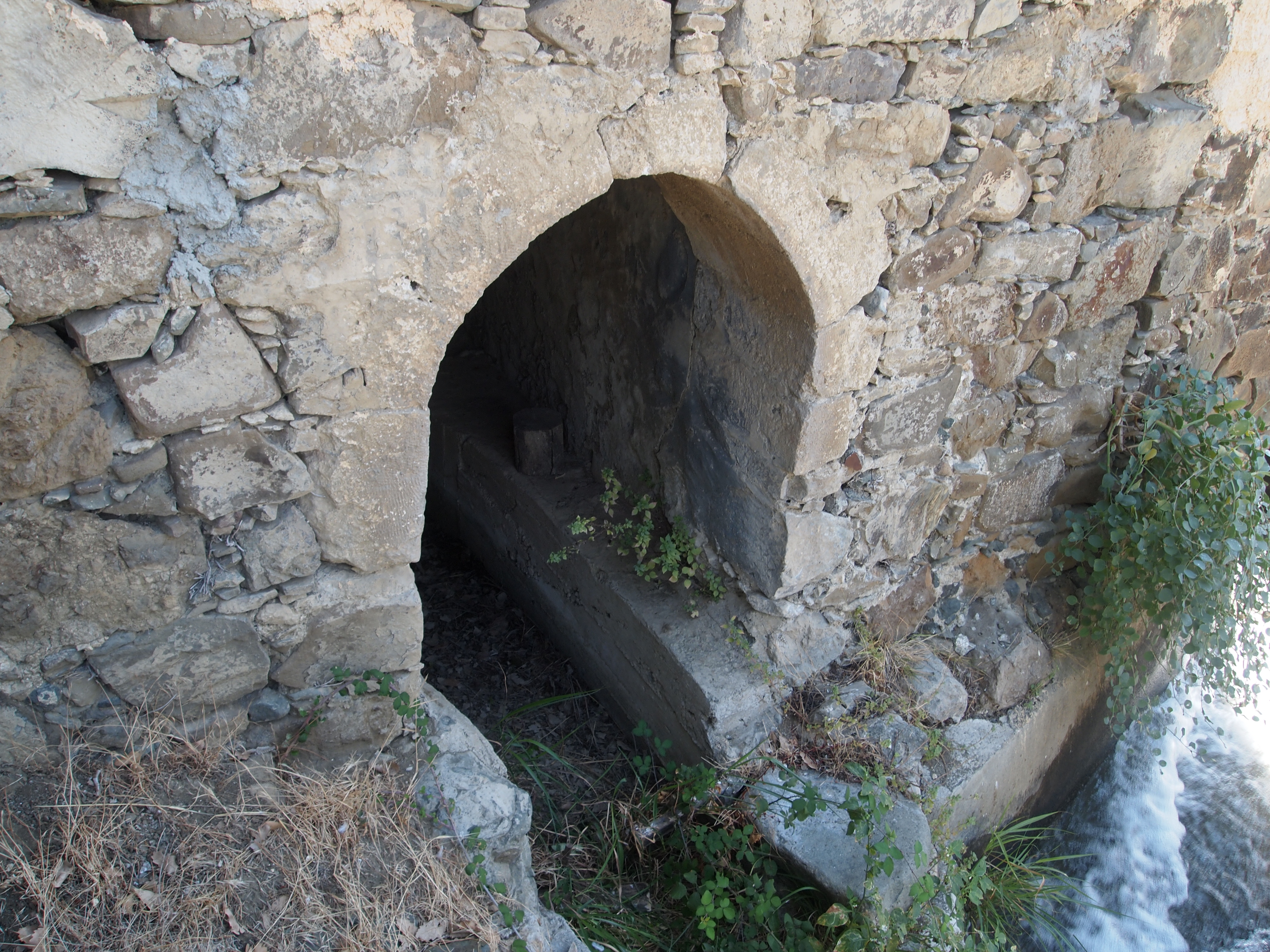

Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (32).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(33).JPG)

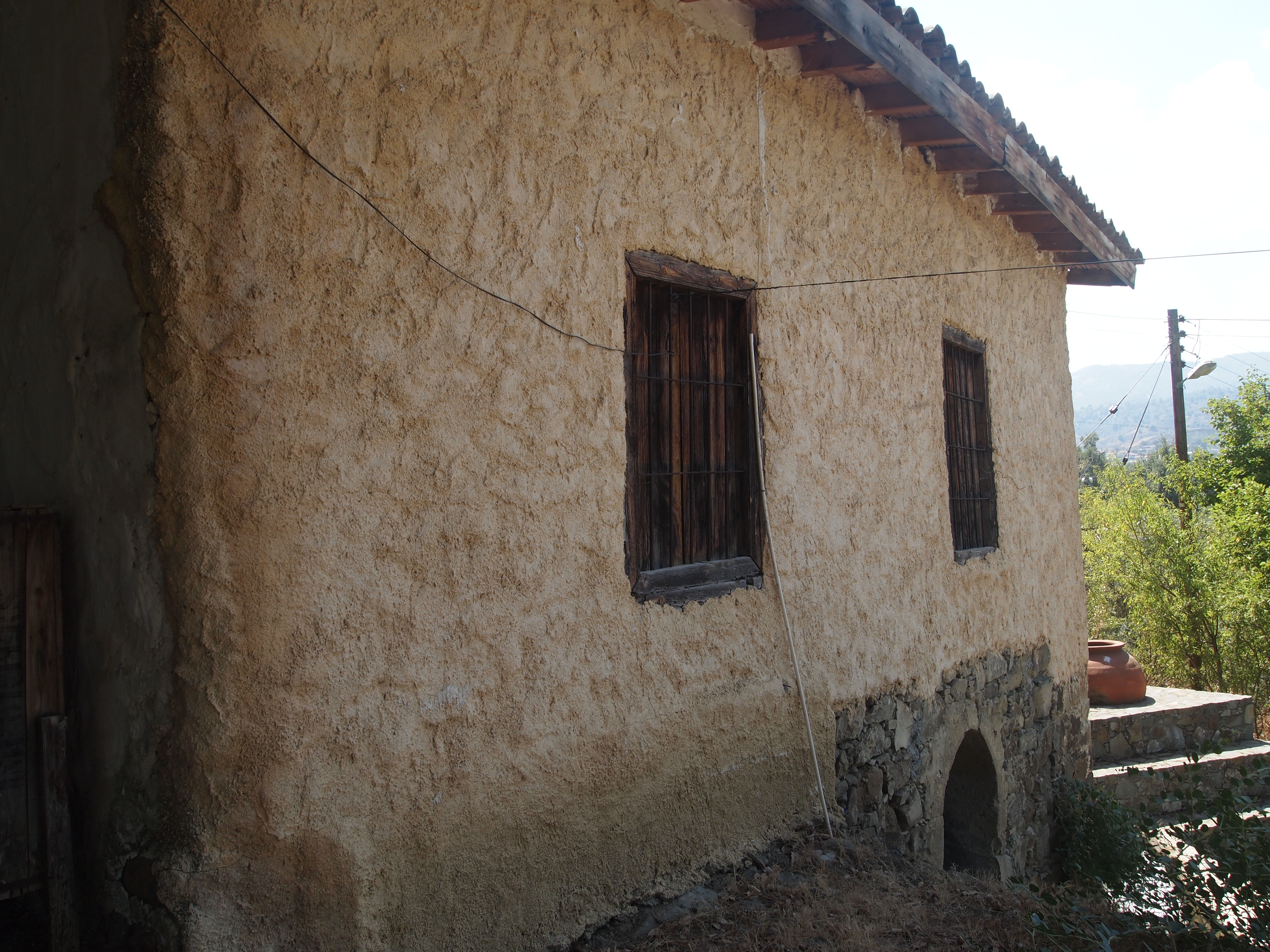

Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (33).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(34).JPG)

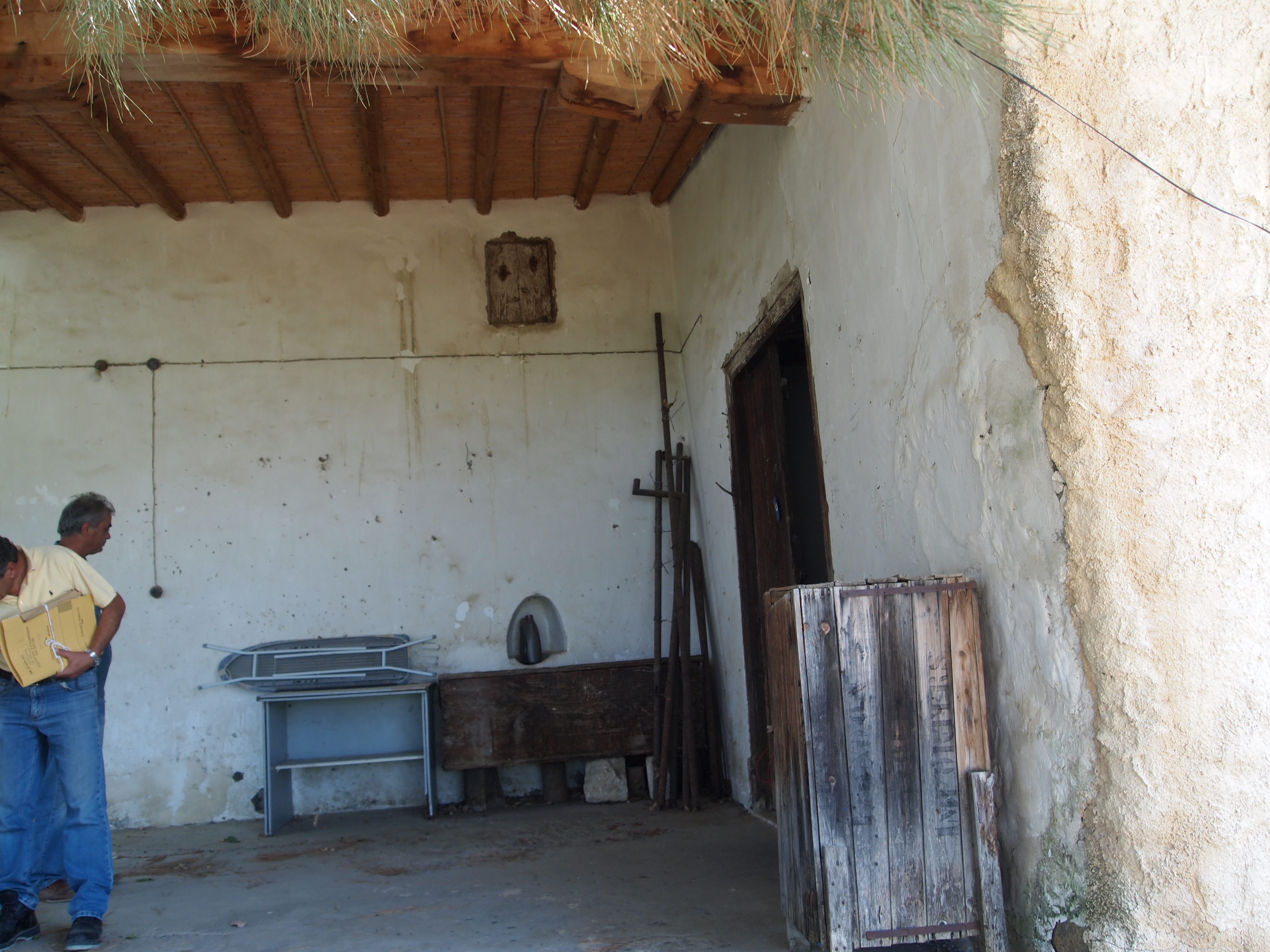

Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (34).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(35).JPG)
Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (35).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(36).JPG)

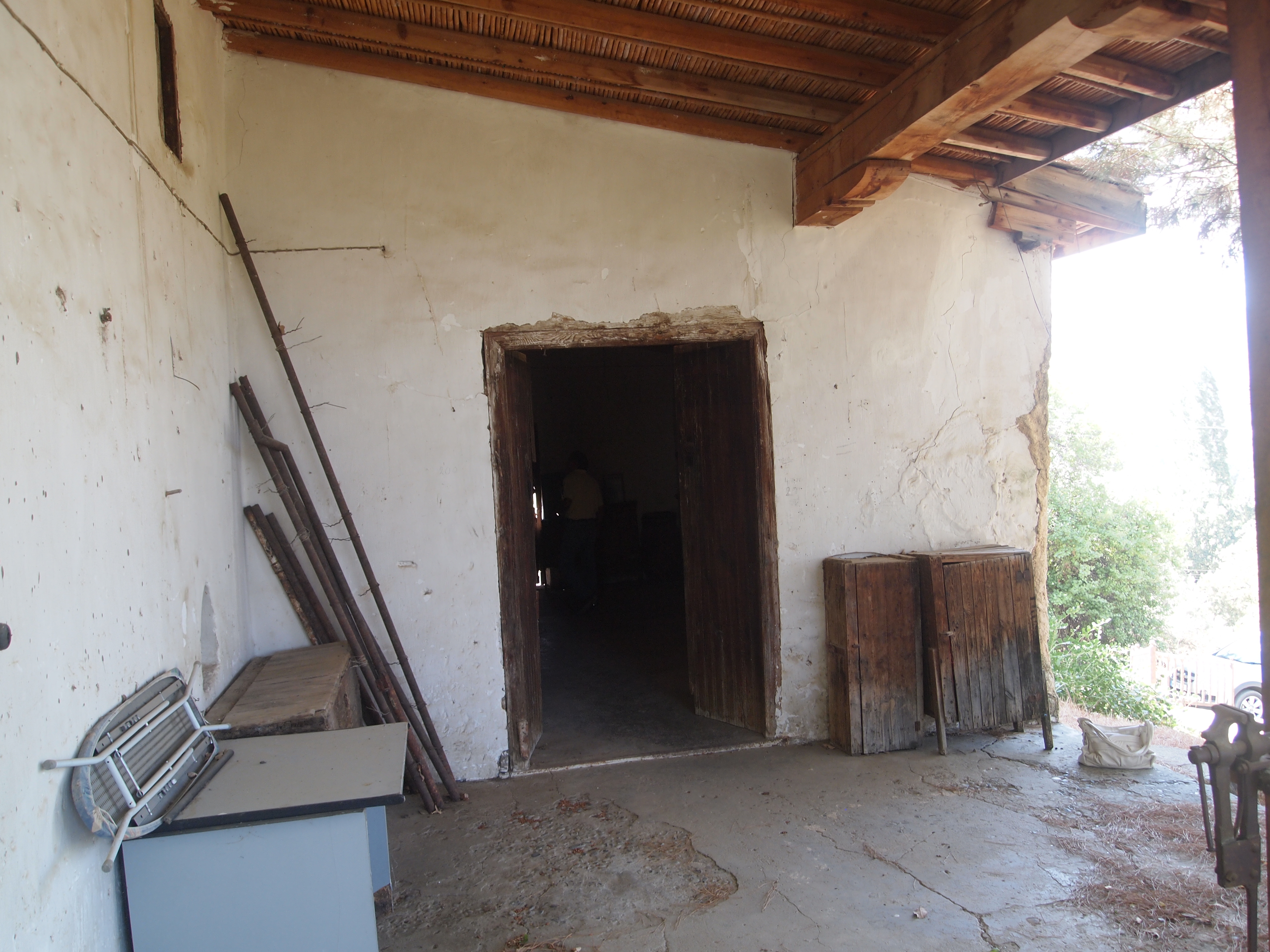

Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (36).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(37).JPG)
Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (37).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(38).JPG)

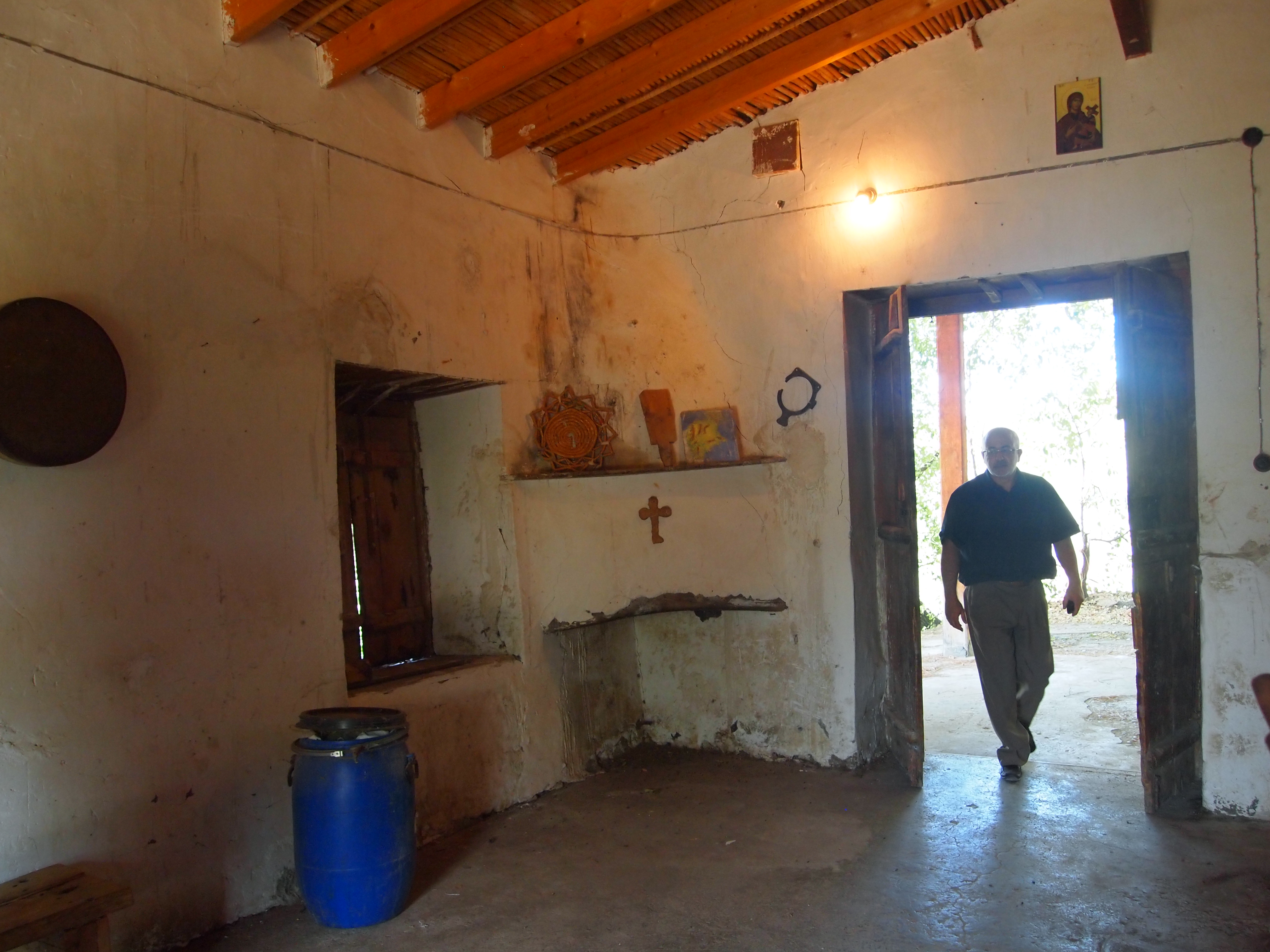

Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (38).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(39).JPG)

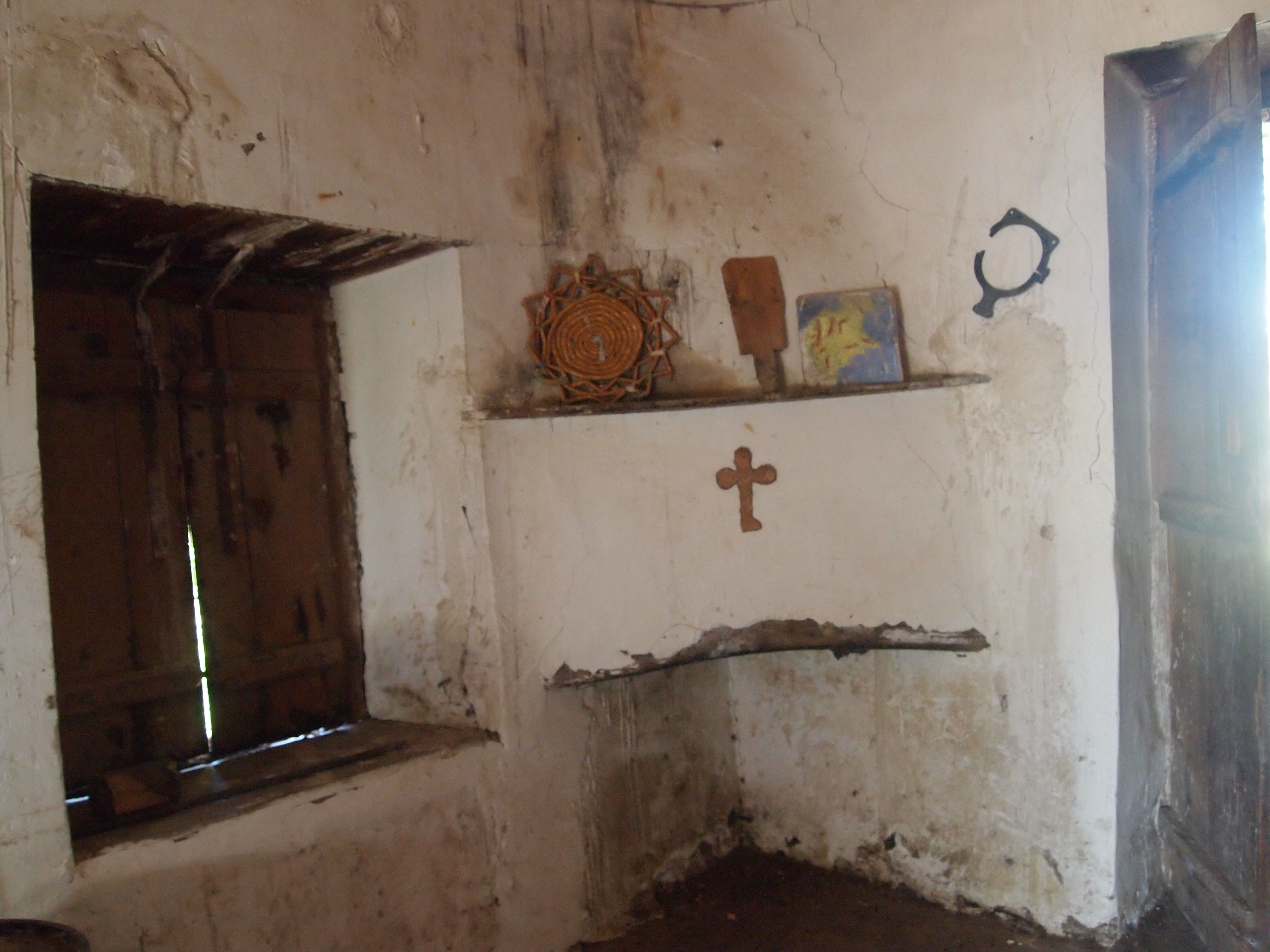

Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (39).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(4).JPG)

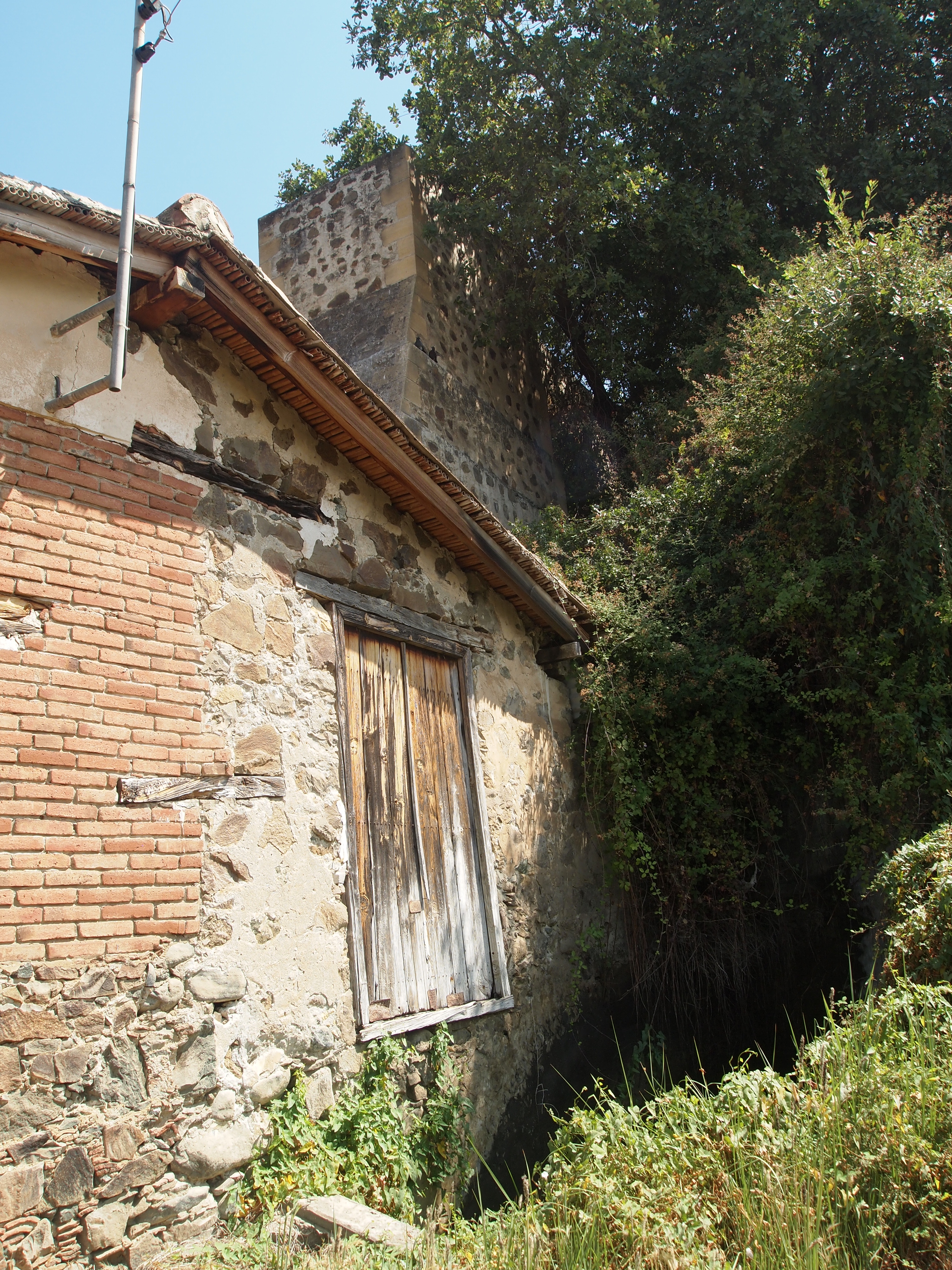

Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (4).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(40).JPG)

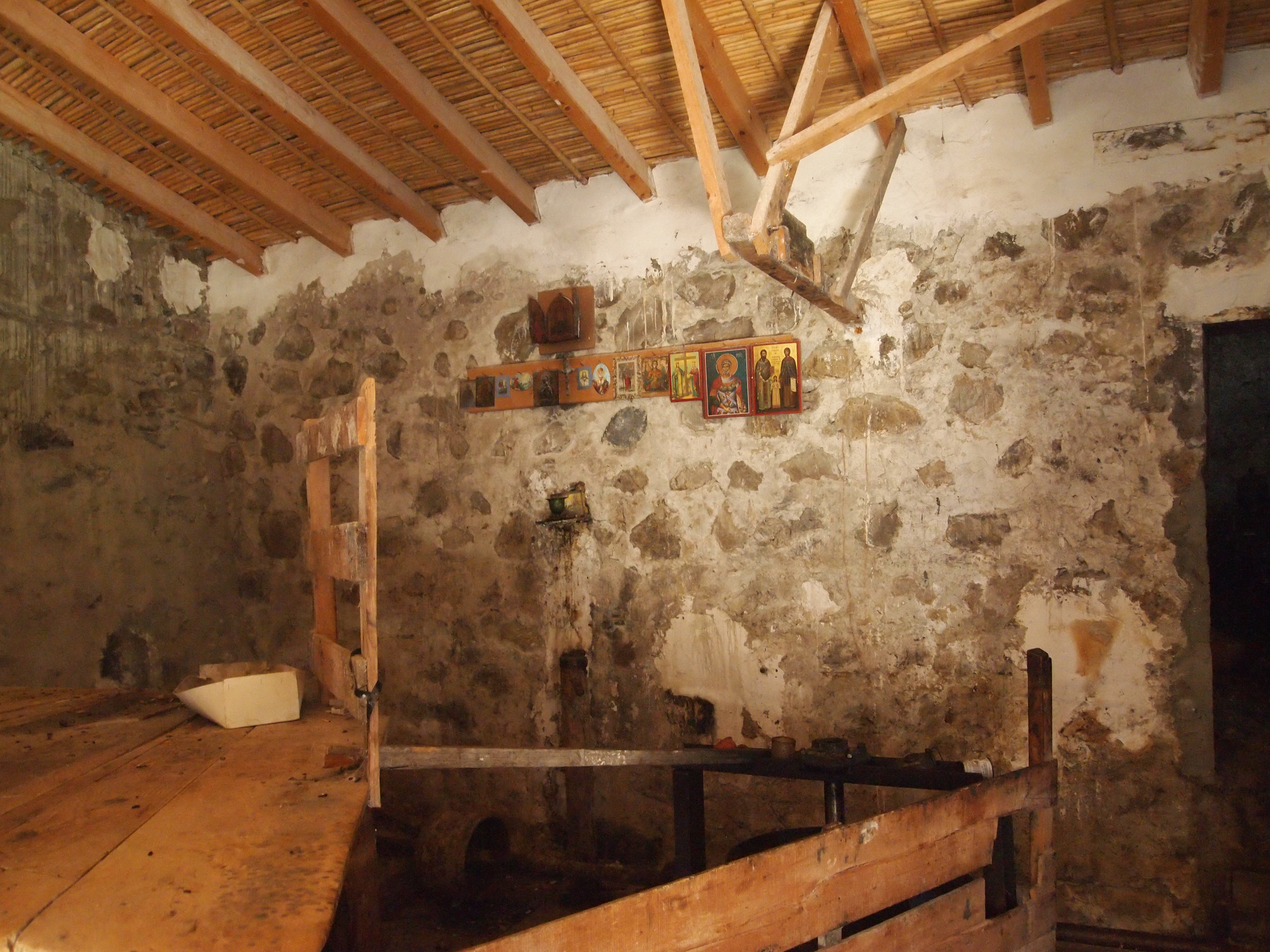

Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (40).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(41).JPG)

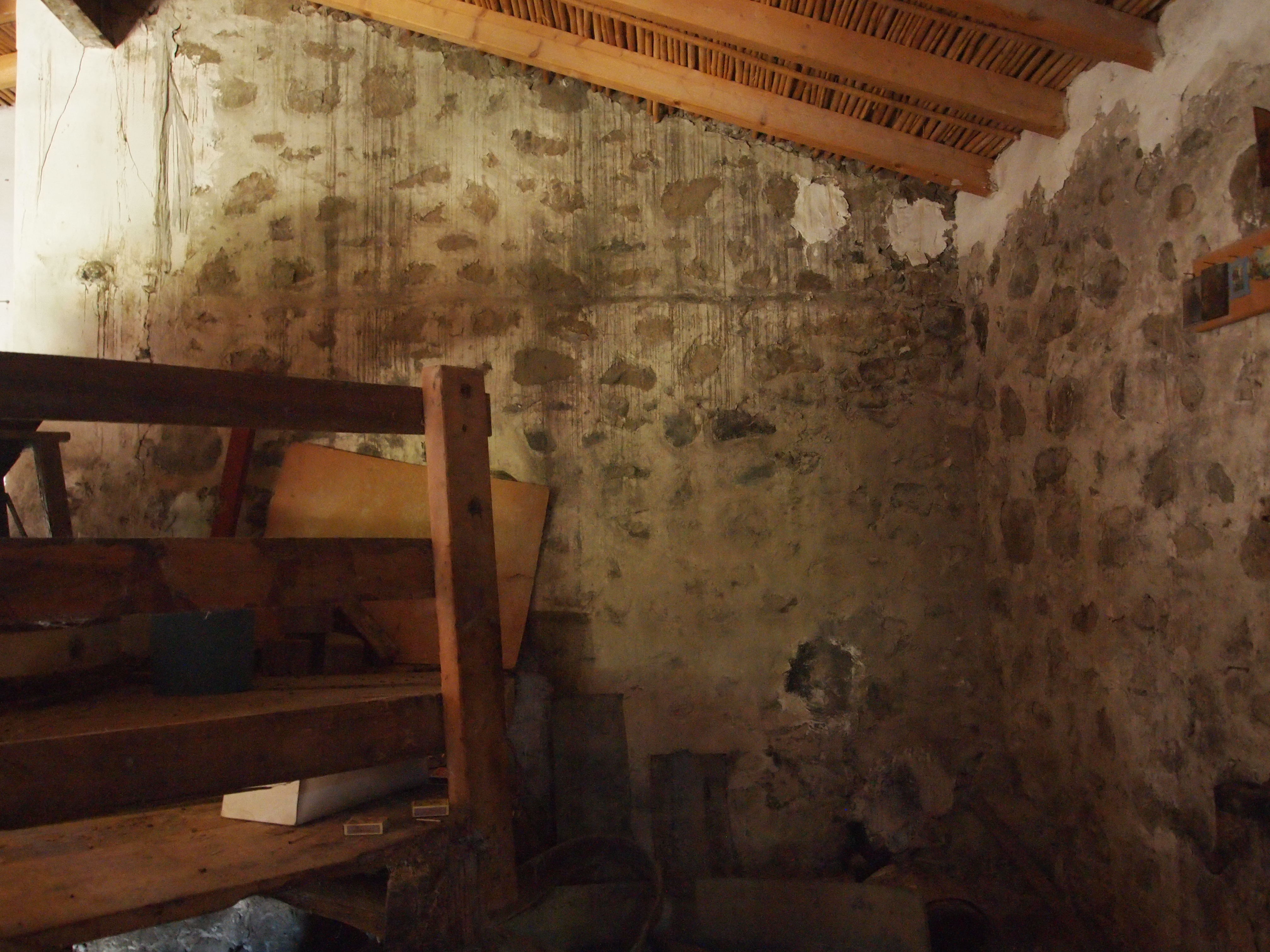

Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (41).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(42).JPG)
Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (42).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(43).JPG)
Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (43).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(44).JPG)
Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (44).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(45).JPG)
Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (45).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(46).JPG)

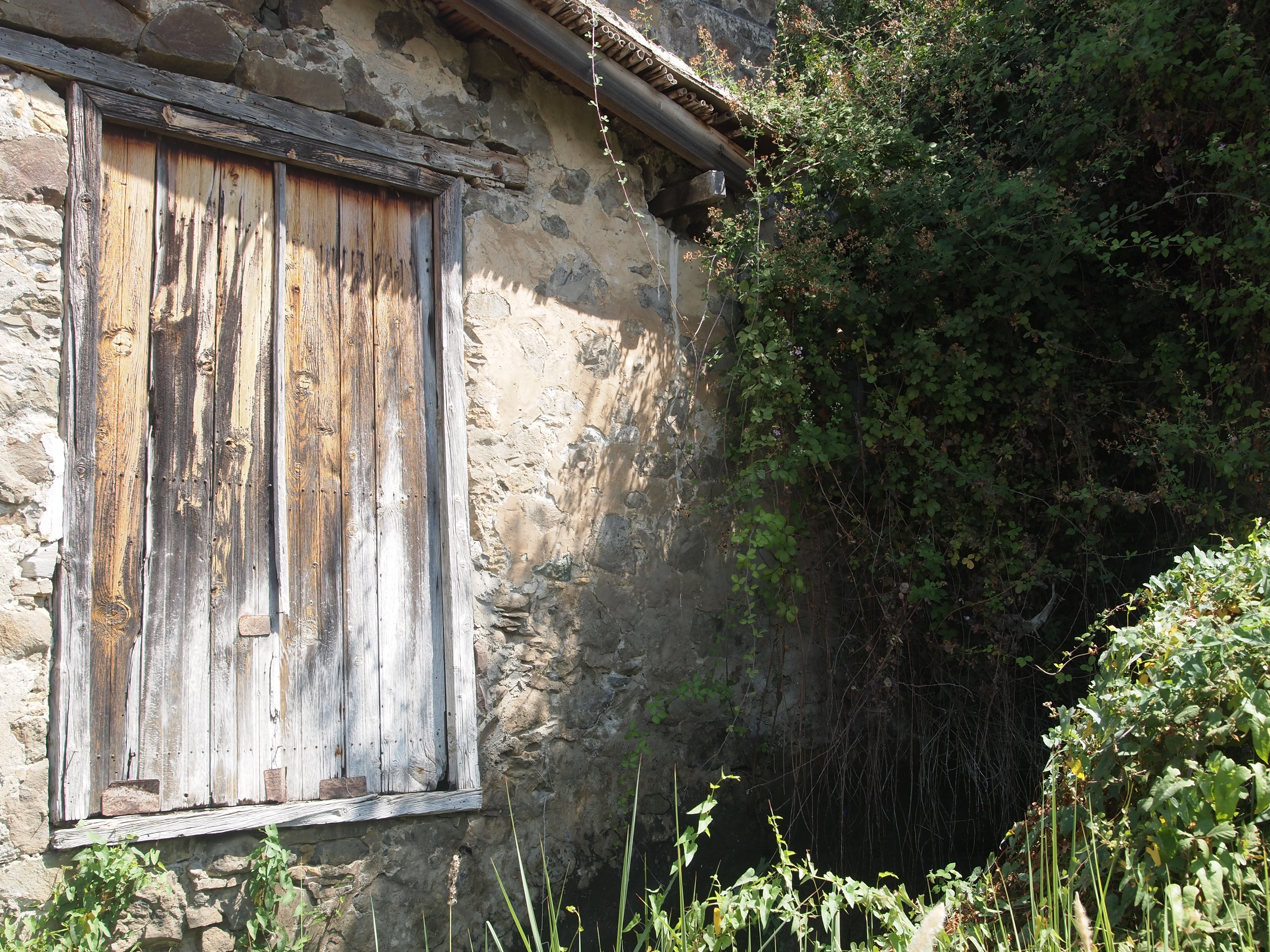

Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (46).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(47).JPG)

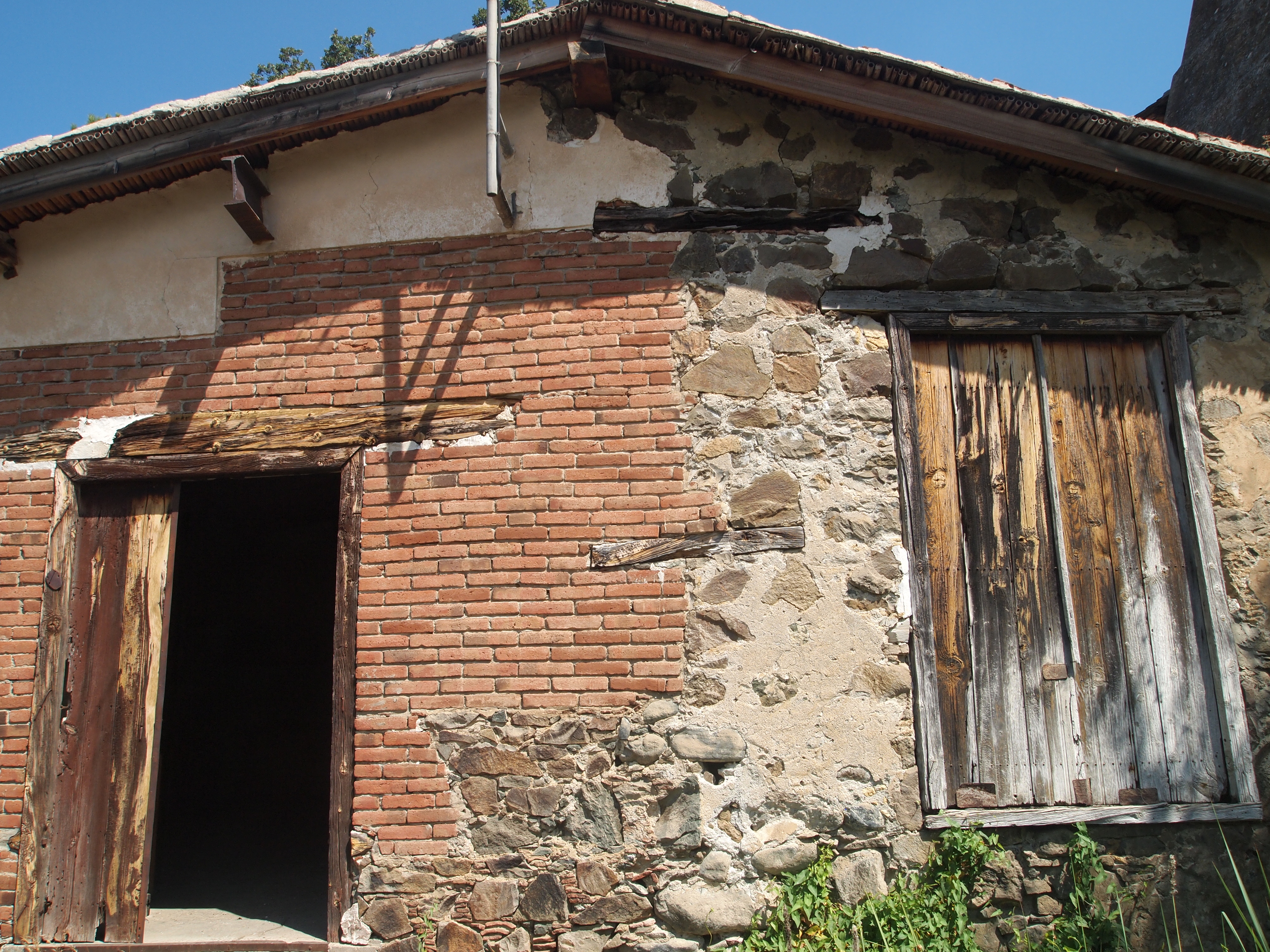

Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (47).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(5).JPG)
Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (5).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(6).JPG)

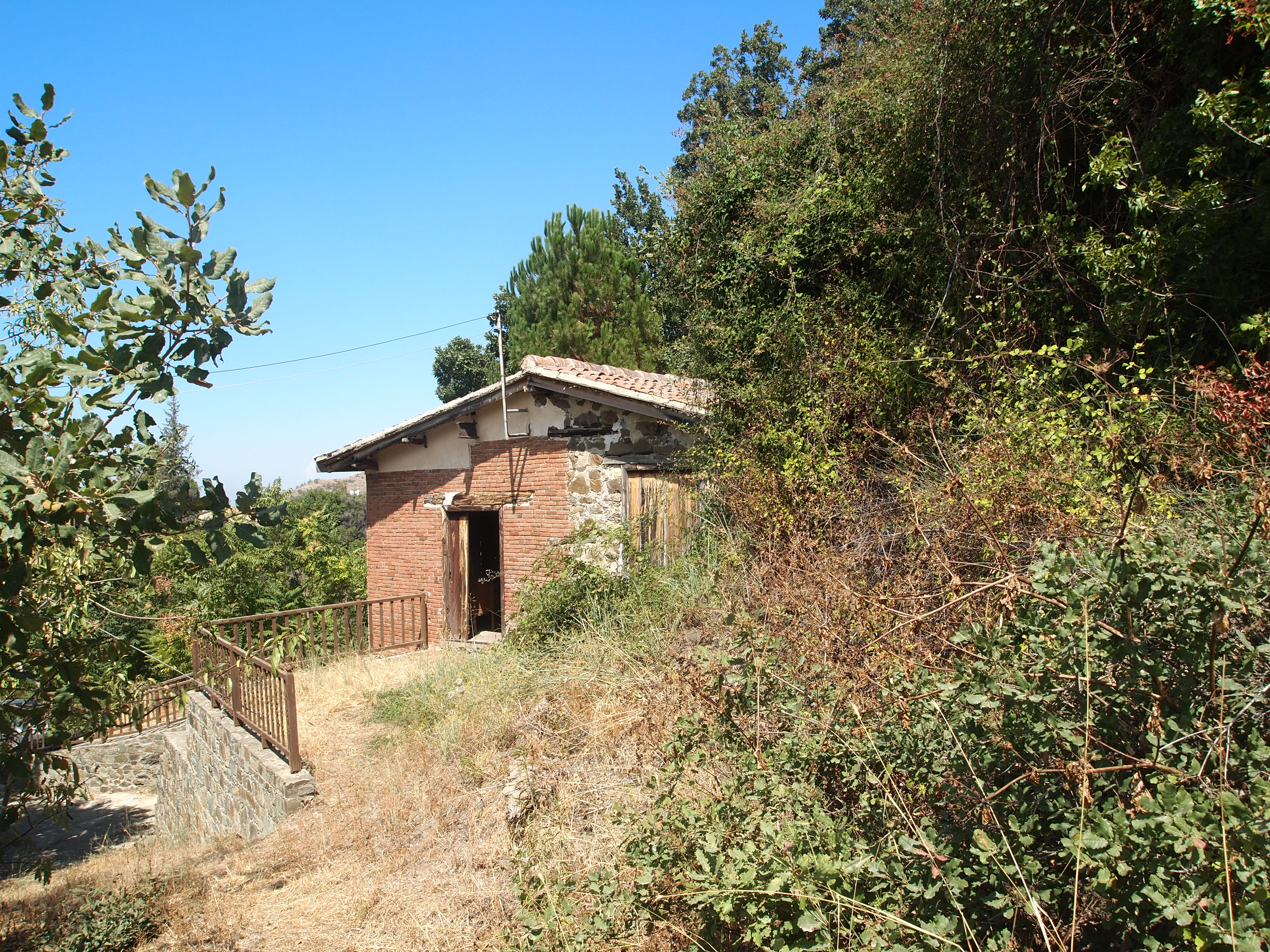

Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (6).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(7).JPG)

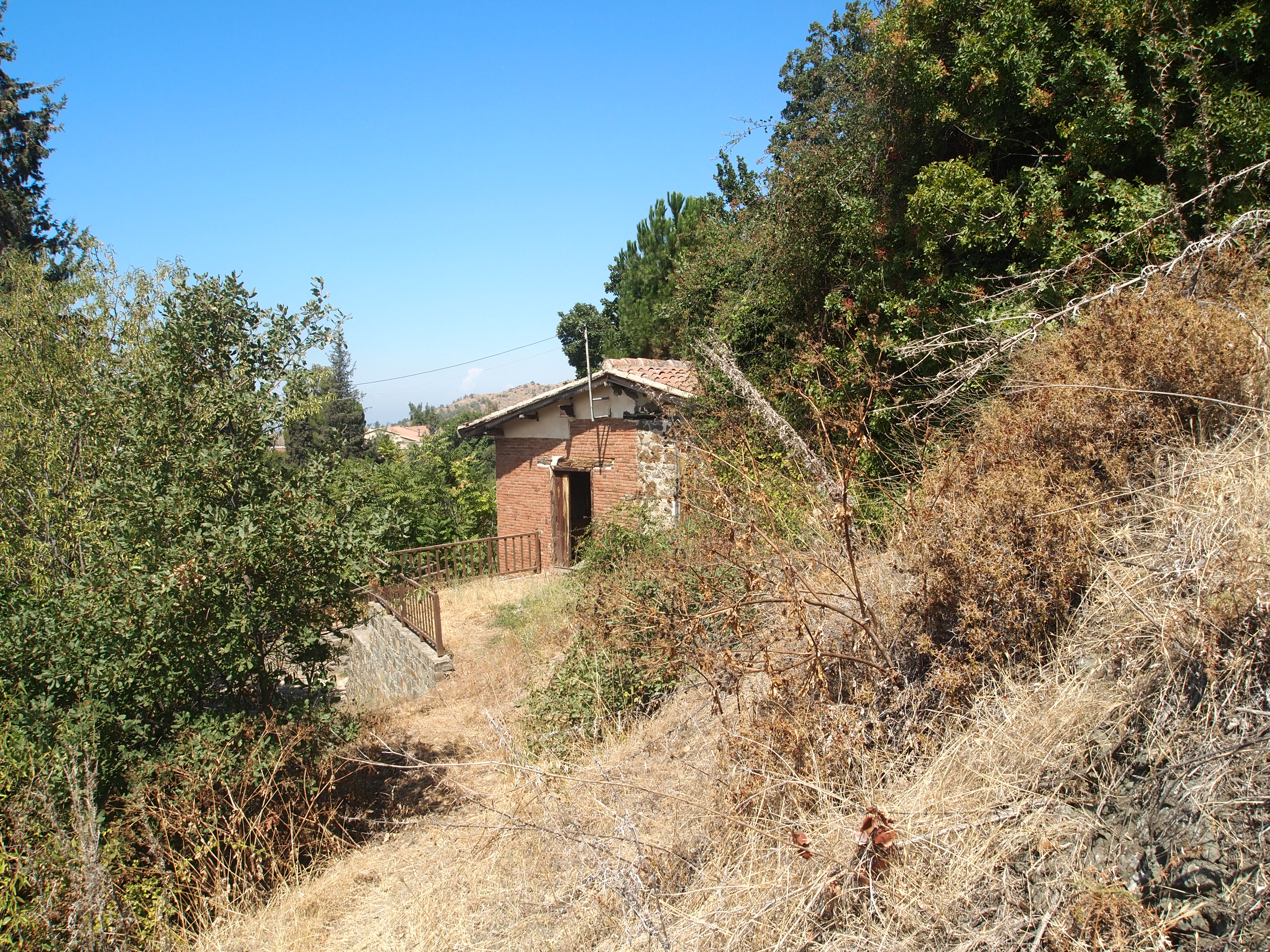

Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (7).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(8).JPG)

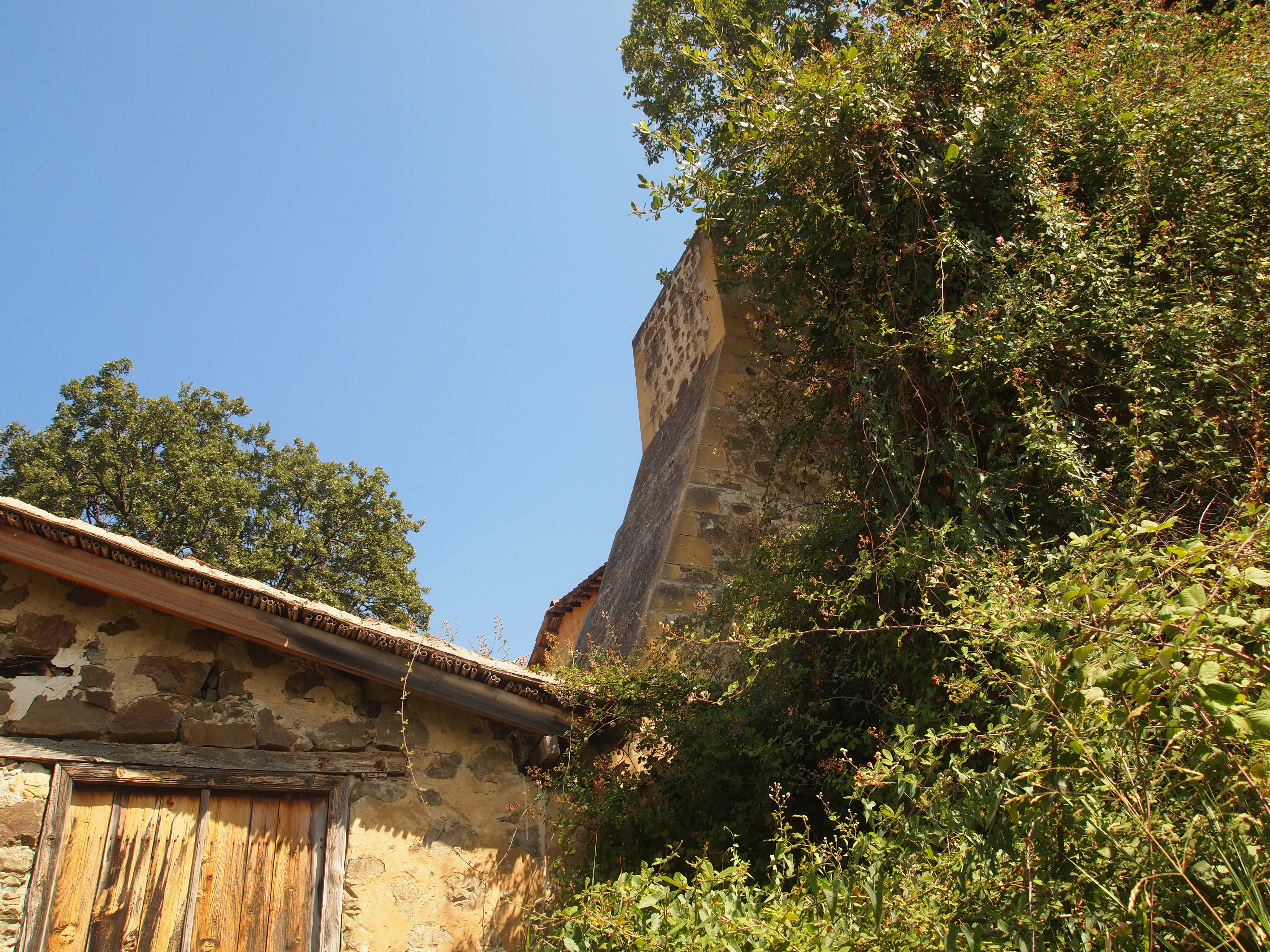

Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (8).JPG
-The-Photographic-Archive-of-the-Cyprus-Department-of-Antiquities-(9).JPG)

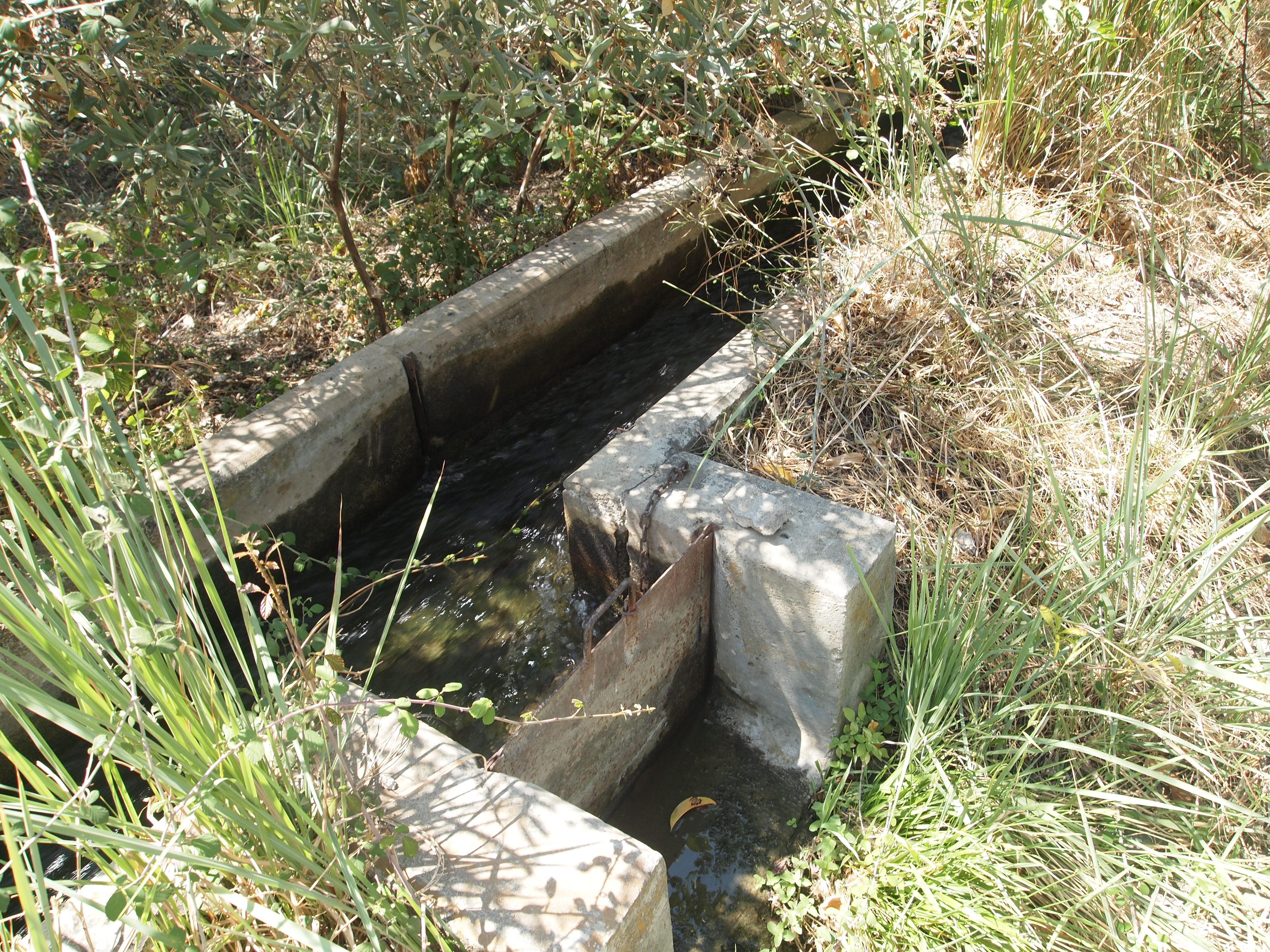

Evrychou (tou Stylianidi) The Photographic Archive of the Cyprus Department of Antiquities (9).JPG
.jpg)

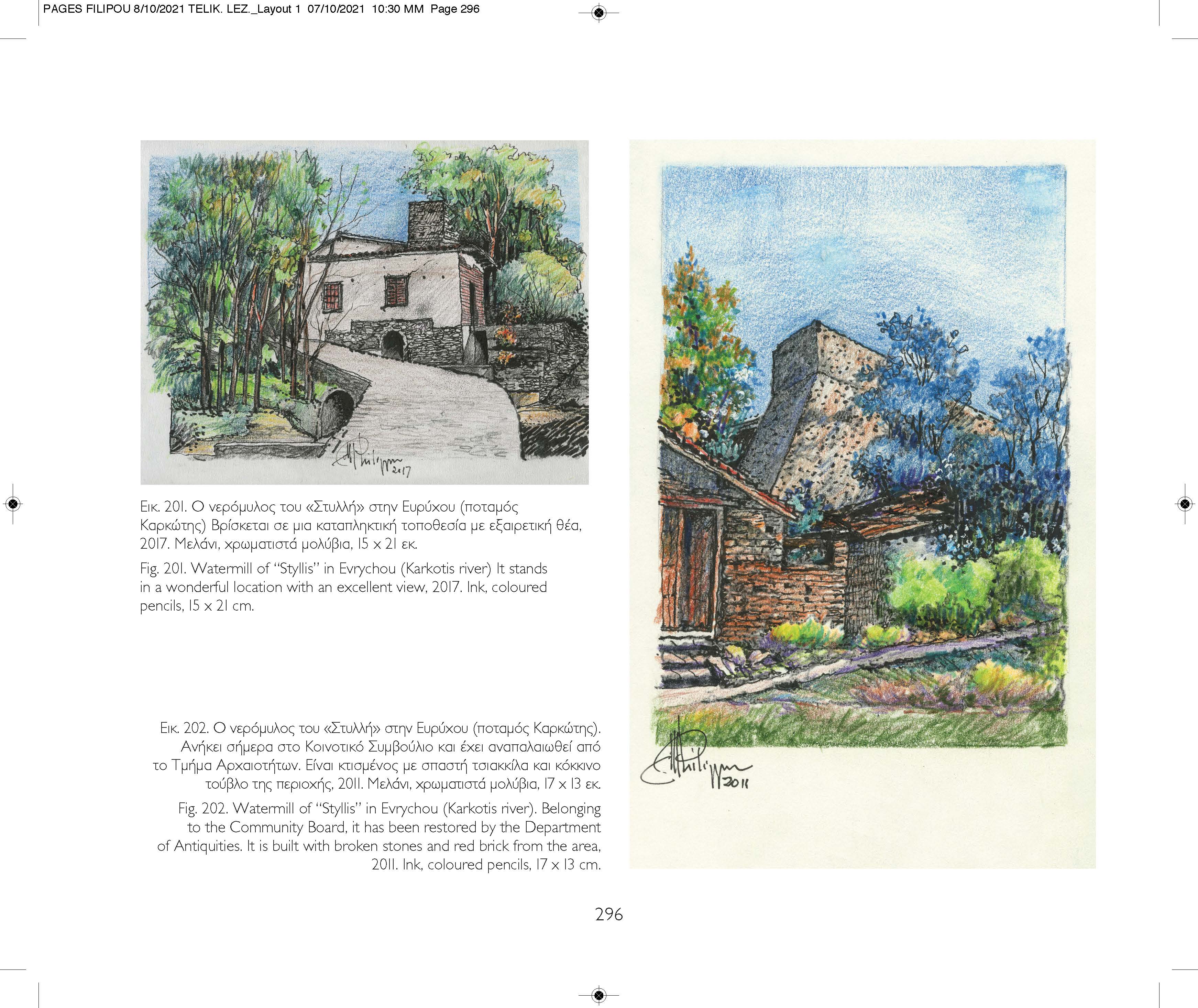

Evrychou (tou Stylli).jpg
-2.JPG)
Evrychou-tou Stylianide (Erin Gibson) 2.JPG
-3.JPG)

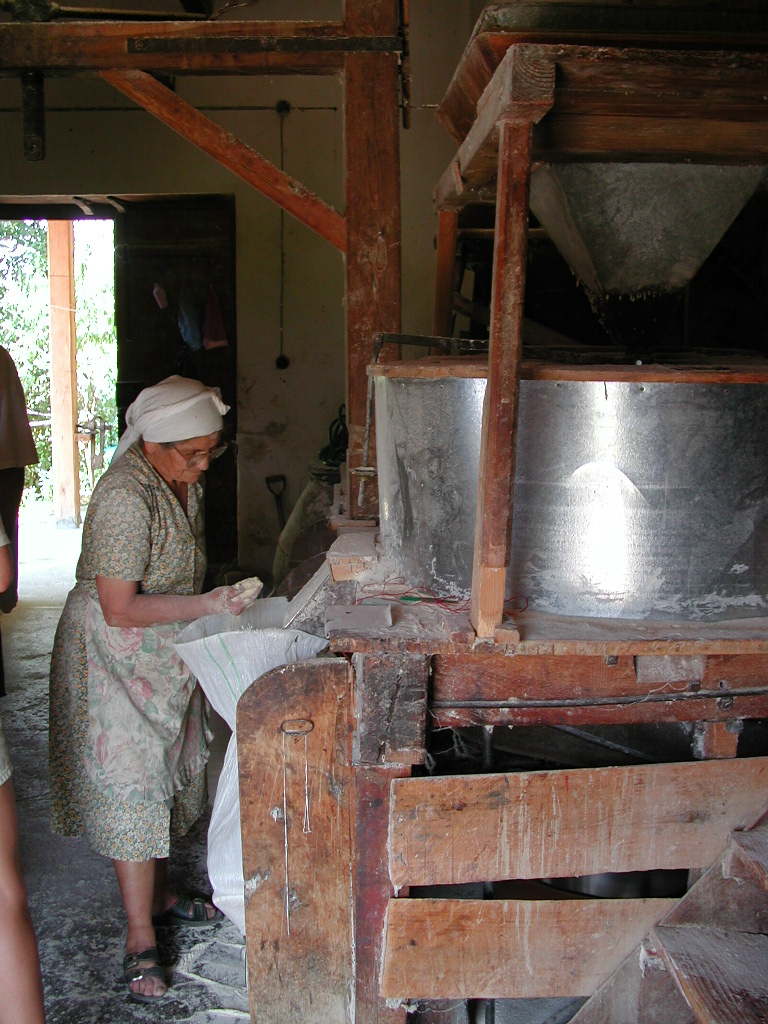

Evrychou-tou Stylianide (Erin Gibson) 3.JPG
.JPG)

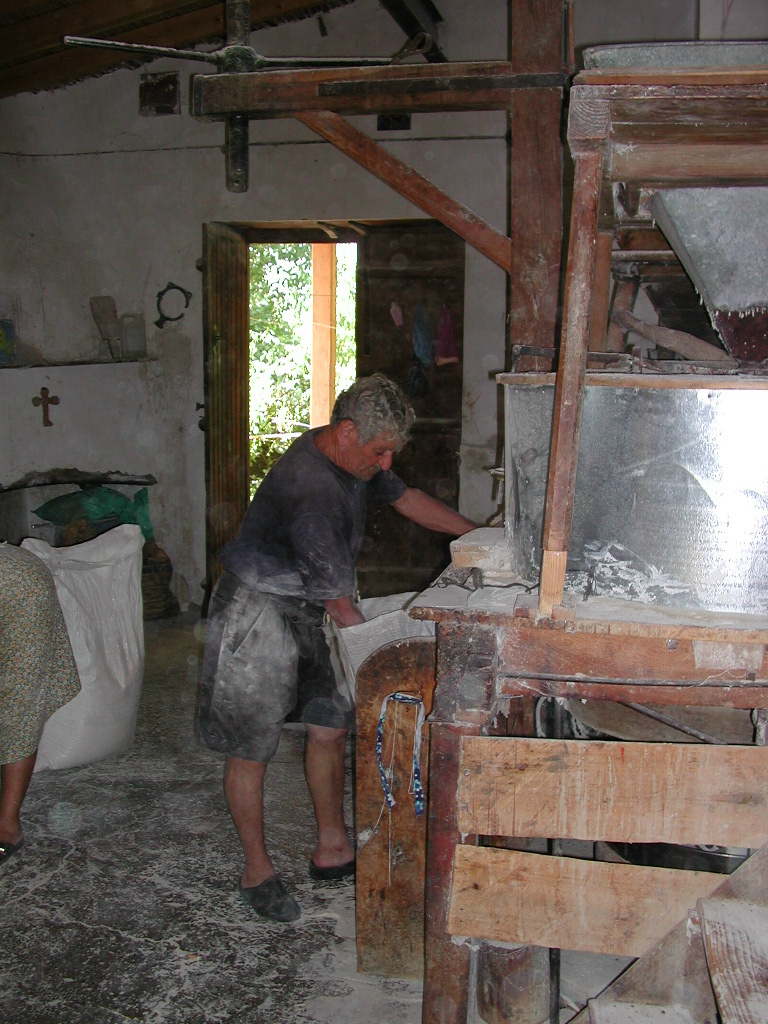

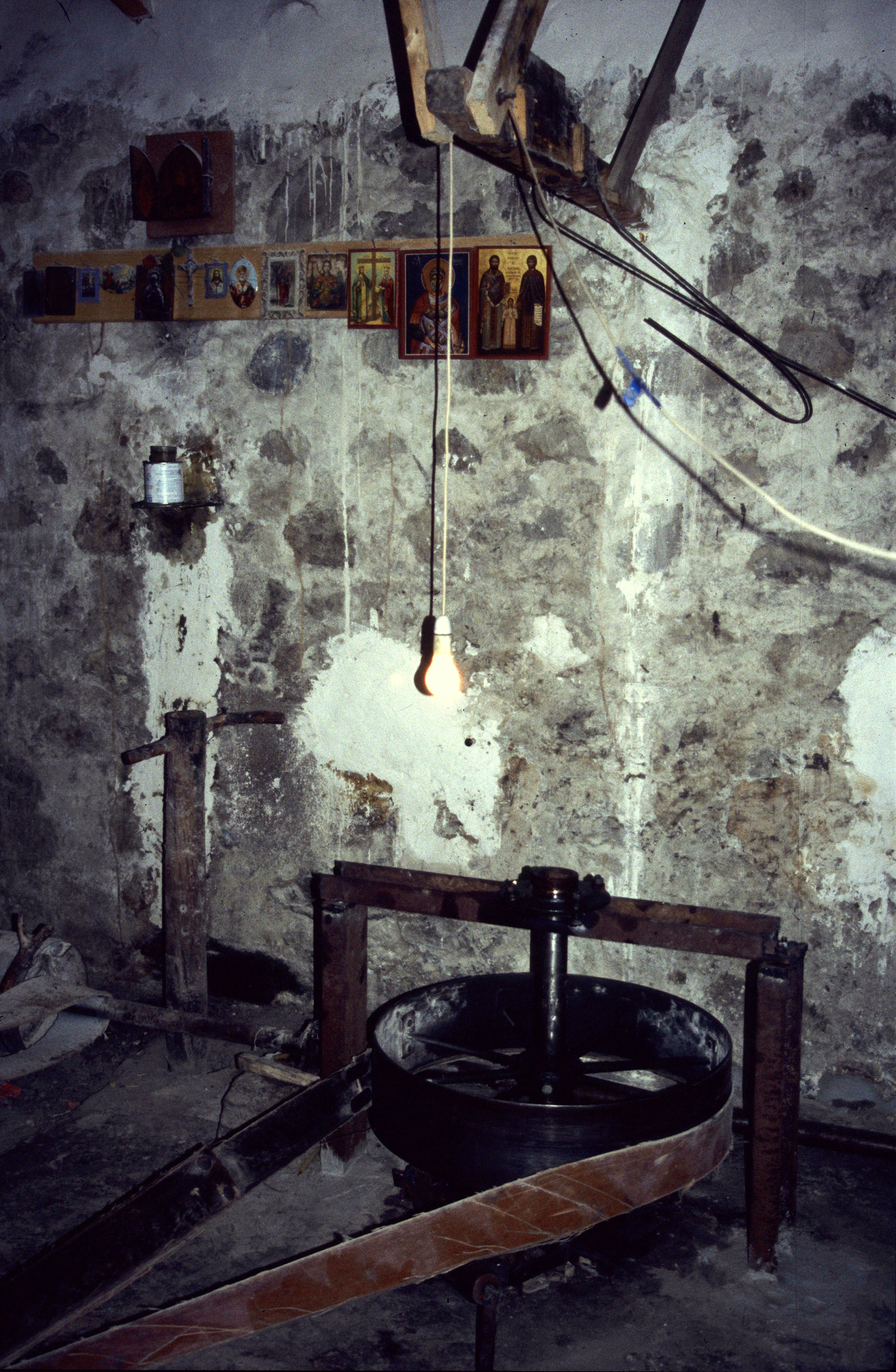

Evrychou-tou Stylianide (Erin Gibson).JPG
